AIR04T
PROAUDIO

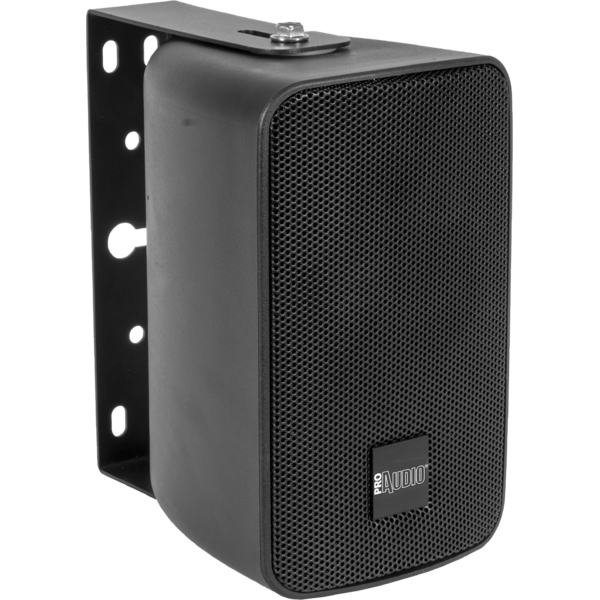

AIR04T

2-way passive loudspeaker, 50W AES, 109dB SPL

Air series outdoor loudspeakers present superior performance and durability with full sound over a large listening area. Thanks to their elegant style and sturdy structure, they are the ideal speakers for listening to music in the pool, on the veranda or even in the boat. The adjustable mounting brackets supplied, allow to set up them vertically or horizontally, so as to integrate them perfectly into the surrounding environment. The IP46 / IP56 structure (depending on the model) is designed to withstand the rigours of the climate all year round due to the outdoor installation.

Main features:

  • Vertically or horizontally mounted with the brackets / supplied supports.
  • Tested to withstand snow, rain and salt.
  • Suitable for use on the boat.
  • The Air 04T 2-way full-range loudspeaker with IP46 waterproof protection is ideal for small outdoor or indoor installations and can be used in combination with DAD Ark 208 divers.
  • Equipped with a transformer for use in 100V systems.
  • The polypropylene cabinet guarantees complete protection against ultraviolet rays.
  • The grid is in perforated aluminium, internally covered in waterproof fabric and open cell expanded polyurethane.
  • The PROAUDIO logo can be rotated for vertical or horizontal installation.

PHOTO GALLERY

Technical specifications

LOUDSPEAKER
  • System type: passive 2 way
COMPONENTS
  • Low frequency: 4'' woofer/1''v.c.
  • High frequency: 1'' dome tweeter/0.8''v.c.
FEATURES
  • AES/program power: 50/100W
  • Input 100 V: 12.5/25/50W
  • SPL max: 109dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • Sensitivity: 88dB
  • Impedance: 16 Ohm
  • SPL cont/peak: 103/109dB
  • Frequency response: 75-20.000Hz
  • Coverage angle HxV: 120x90°
  • Cross over frequency: 3500Hz
  • Protection: H.F. signal compression
  • Suggest HPF range: 160/180Hz
  • Recommended amplifier up to: 100W
INPUT/OUTPUT CONNECTORS
  • Input signal: Phoenix IN/OUT
CABINET CONSTRUCTION
  • Cabinet material: polypropilene
  • Sospension system: wall brackets (included)
PHYSICAL
  • IP rating: 46 for outdoor installations
  • Dimensions (WxHxD): 141x230x170mm / 5.55''x9.06''x6.69''
  • Weight: 3.2kg / 7.05lbs

Versions

Code
AIR04TBK
AIR04TBK
AIR04TWH
AIR04TWH

Accessories & Related Products

AIRWB46
AIRWB46
(Optional)
