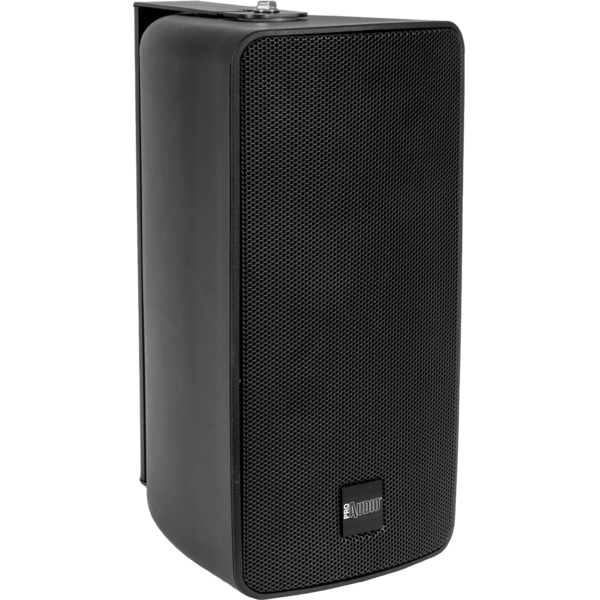

AIR06T

2-way passive loudspeaker, 120W AES, 116dB SPL

AIR series outdoor loudspeakers present superior performance and durability with full sound over a large listening area. Thanks to their elegant style and sturdy structure, they are the ideal speakers for listening to music in the pool, on the veranda or even in the boat. The adjustable mounting brackets supplied, allow to set up them vertically or horizontally, so as to integrate them perfectly into the surrounding environment. The IP46 / IP56 structure (depending on the model) is designed to withstand the rigours of the climate all year round due to the outdoor installation.

Main features:

  • Vertically or horizontally mounted with the brackets /supplied supports.
  • Tested to withstand snow, rain and salt.
  • Suitable for use on the boat.
  • The AIR06T 2-way full-range loudspeaker with IP46 waterproof protection is ideal for small outdoor or indoor installations and can be used as a satellite in combination with DAD ARK208 divers.
  • Equipped with a transformer for use in 100V systems.
  • The polypropylene cabinet guarantees complete protection against ultraviolet rays.
  • The grid is in perforated aluminium, internally covered in waterproof fabric and open cell expanded polyurethane.
  • The PROAUDIO logo can be rotated for vertical or horizontal installation.

PHOTO GALLERY

Technical specifications

LOUDSPEAKER
  • System type: passive 2 way
COMPONENTS
  • Low frequency: 6'' woofer/1.5''v.c.
  • High frequency: 1'' driver/1''v.c.
FEATURES
  • AES/program power: 120/240W
  • Input 100 V: 30/60/120W
  • SPL max: 116dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • Sensitivity: 89dB
  • Impedance: 16 Ohm
  • SPL cont/peak: 110/116dB
  • Frequency response: 60-18.000Hz
  • Coverage angle HxV: 90x60°
  • Cross over frequency: 2400Hz
  • Protection: H.F. signal compression
  • Suggest HPF range: 140/180Hz
  • Recommended amplifier up to: 240W
INPUT/OUTPUT CONNECTORS
  • Screw terminal IN/OUT: phoenix
  • Input signal: Phoenix IN/OUT
CABINET CONSTRUCTION
  • Cabinet material: polypropilene
  • Sospension system: wall brackets (included)
PHYSICAL
  • IP rating: 46 for outdoor installations
  • Dimensions (WxHxD): 182x362x224mm / 7.17''x14.25''x8.82''
  • Weight: 7.2kg / 15.87lbs

Versions

Code
AIR06TBK
AIR06TBK
AIR06TWH
AIR06TWH

Accessories & Related Products

AIRWB46
AIRWB46
(optional)

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetAir06t_A4_DATASHEET.pdf296KB

User manual

File name File size Download
User manualAir06t_USER_MANUAL_ITEN.pdf2MB
User manualAir06t_USER_MANUAL.pdf2MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DAir06t_CAD_2D.dwg2MB
Technical drawingAir06t_TECHNICAL_DRAWING.pdf143KB

Tech docs

File name File size Download

Software

File name File size Download
SoftwareFile preset AIR - IDEA series16KB

Firmware
