AIR08TCOAX
PROAUDIO

AIR08TCOAX

ORDER CODE: AIR08TCOAX

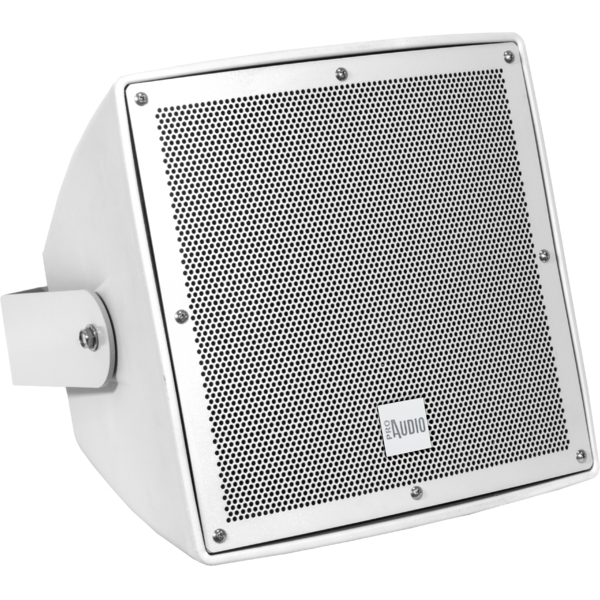

2-way passive loudspeaker, coaxial design, 180 W AES, 123dB SPL

AIR series outdoor loudspeakers present superior performance and durability with full sound over a large listening area. Thanks to their elegant style and sturdy structure, they are the ideal speakers for listening to music in the pool, on the veranda or even in the boat. The adjustable mounting brackets supplied, allow to set up them vertically or horizontally, so as to integrate them perfectly into the surrounding environment. The IP46 / IP56 structure (depending on the model) is designed to withstand the rigours of the climate all year round due to the outdoor installation.

Main features:

  • The AIR08TCOAX 2-way full-range loudspeaker with IP56 waterproof protection is ideal for long distances in professional installations both indoors and outdoors.
  • The coaxial transducer allows uniform coverage and high intelligibility.
  • Equipped with a transformer for use in 100V systems.
  • The polypropylene cabinet guarantees complete protection against ultraviolet rays.
  • The grid is in perforated aluminium, internally covered in waterproof fabric and open cell expanded polyurethane.
  • Tested to withstand snow, rain and salt.
  • Suitable for use on the boat.

PHOTO GALLERY

Technical specifications

LOUDSPEAKER
  • System type: passive 2 way coaxial design
COMPONENTS
  • Low frequency: 8'' woofer/2''v.c.
  • High frequency: 1'' driver/1.4''v.c.
FEATURES
  • AES/program power: 180/360W
  • Input 100 V: 45/90/180W
  • SPL max: 123dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • Sensitivity: 96dB @1W/1m (free field)
  • Impedance: 8 Ohm
  • SPL cont/peak: 117/123dB @1m (free field)
  • Frequency response: 80-18000Hz (±3dB)
  • Coverage angle HxV: 100x100°
  • Cross over frequency: 2500Hz
  • Protection: H.F. signal compression
  • Suggest HPF range: 120/160Hz
  • Recommended amplifier up to: 360W
INPUT/OUTPUT CONNECTORS
  • Input signal: screw terminal IN/OUT
CABINET CONSTRUCTION
  • Cabinet material: polypropilene
  • Sospension system: wall brackets (included)
PHYSICAL
  • IP rating: 56 for outdoor installations
  • Dimensions (WxHxD): 300x302x334mm / 11.81''x11.89''x13.15''
  • Weight: 10kg / 22.05lbs

Versions

Accessories & Related Products

    DOWNLOAD

    Data sheet & specs

    File name File size Download

    User manual

    DMX chart & personalities

    File name File size Download

    Photometrics

    File name File size Download

    CAD symbols & drawings

    File name File size Download
    2DAir08tcoax_CAD_2D.dwg358KB
    Technical drawingAir08tcoax_TECHNICAL_DRAWING.pdf93KB

    Tech docs

    File name File size Download

    Software

    File name File size Download
    SoftwareFile preset AIR - IDEA series16KB

    Firmware
