AM412R
PROAUDIO
end of life

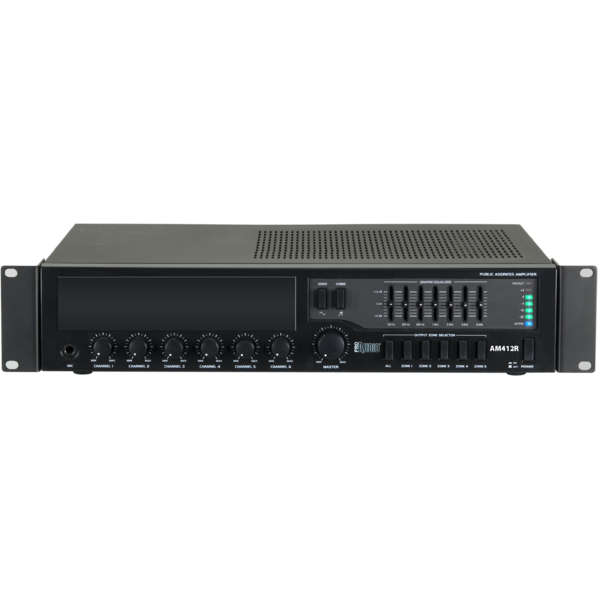

AM412R

ORDER CODE: AM412R

5 zone mixer/amplifier with remote control through dedicated microphone stand, equalizer and slot for CD / USB / Tuner module, designed for paging, music, sound reinforcement mixing and diffusion in PA systems.

Main features:

  • Low impedance outputs (4-16 ohm) and constant voltage outputs (70-100V).
  • Inputs: 5 Mic, 1 line/Mic, 1 Telephone.
  • Input with priority function (vocal activation) and switches on Mic1 and Mic2.
  • Chime/Siren function with volume control.
  • Link In and Link Out for connection to external amplifiers.
  • Phantom power selector on Mic1 and Mic2.
  • LED Vu meter.
  • 7-Band graphic equalizer.
  • Five independent selectable zones .
  • Independent level control on input signals.
  • Rack-mounting brackets included (2U 19” rack standard).

PHOTO GALLERY

Technical specifications

AMPLIFIED MIXER
  • Channels: 1
  • Zone: 5
  • Circuit class: digital
OUTPUT
  • Power at constant voltage (70/100V): 120W
  • Power at low impedance (4 Ohm): 120W
AUDIO SPECIFICATIONS
  • Frequency responce: 50 - 16000Hz @ 8 Ohm (±0.5 dB)
  • THD+N: <1%
  • Input impedance: 10kΩ
  • Signal/Noise rate: >90dB
POWER SUPPLY STAGE
  • Type: Trasformer
  • Operating voltage/frequency: 100/240V, 50/60Hz
PROTECTIONS
  • Output: Soft-start, short circuit, DC, overheat
FUNCTIONS
  • Tone controls output: 125Hz, 250Hz, 500Hz, 1KHz, 2kHz, 4kHz, 8kHz (±12dB)
  • Input volume control: ch1-6
  • Output volume control: Volume control each zone
INDICATORS
  • Indicators: LED bar - signal level, over temperature and protection
INPUT/OUTPUT CONNECTORS
  • Input signal: XLR/Jack bal. pin RCA unbal
  • Output signal: screw terminal block
  • Power connection: VDE
PHYSICAL
  • Cooling: active, silent operation
  • Dimensions (WxHxD): 420x88x320mm / 16.54''x3.46''x12.6''
  • Rack unit: 2
  • Weight: 9.76kg / 21.52lbs

Versions

Accessories & Related Products

AM5RCS
AM5RCS
(Optional)
Microphone station for the remote control of the AM412R - AM430R mixer
USB412S
USB412S
(Optional)
Mp3/Tuner/USB/SDcard Module, compatible with AM412/430S amplifier
