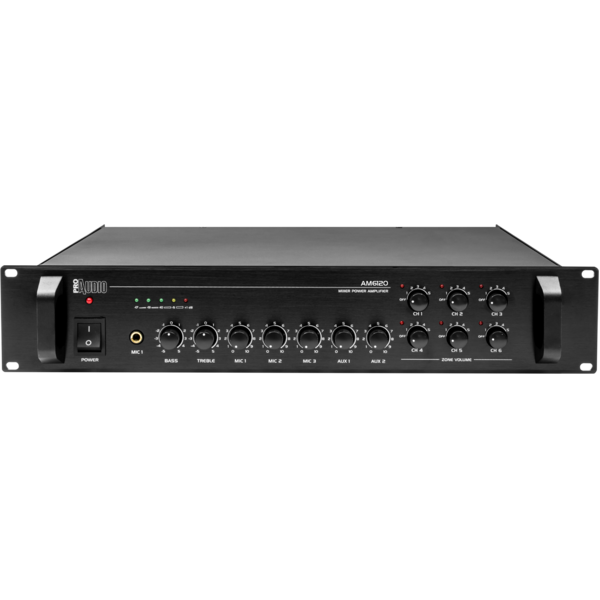

AM6120
PROAUDIO

AM6120

ORDER CODE: AM6120

6 zone mixer/amplifier designed for mixing and broadcasting voice announcements and music in PA systems

Main features:

  • 4-16 Ohm low impedance outputs and constant voltage outputs (70/100 V).
  • 5 inputs: 3 Mic in, 2 stereo line.
  • Mic 1 input with priority function (vocal activation).
  • RCA PRE-OUT output.
  • LED Vu meter.
  • Bass and treble EQ controls.
  • Volume control each zone.
  • Independent level controls for input signals.
  • 2U 19” standard rack.

PHOTO GALLERY

Technical specifications

AMPLIFIED MIXER
  • Channels: 1
  • Zone: 6
  • Circuit class: analog
OUTPUT
  • Power at constant voltage (70/100V): 120W
  • Power at low impedance (4 Ohm): 120W
AUDIO SPECIFICATIONS
  • Frequency responce: 60 - 16000Hz @ 8 Ohm (±0.5 dB)
  • THD+N: <0.5%
  • Input impedance: 10kΩ
  • Signal/Noise rate: >90dB
POWER SUPPLY STAGE
  • Type: Trasformer
  • Operating voltage/frequency: 230V (+/- 5%) 50Hz
PROTECTIONS
  • Output: Soft-start, short circuit, DC, overheat
FUNCTIONS
  • Tone controls output: BASS: +/- 10 dB @ 100 Hz TREBLE: +/- 10 dB @ 10 Khz
  • Input volume control: mic1, mic2, mic3, aux1, aux2
  • Output volume control: Volume control each zone
INDICATORS
  • Indicators: LED bar - signal level, over temperature and protection
INPUT/OUTPUT CONNECTORS
  • Input signal: XLR/Jack bal. pin RCA unbal
  • Output signal: screw terminal block
  • Power connection: VDE
PHYSICAL
  • Cooling: active, silent operation
  • Dimensions (WxHxD): 483x89x366mm / 19.02''x3.5''x14.41''
  • Rack unit: 2
  • Weight: 13kg / 28.66lbs

Versions

Accessories & Related Products

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualAm6120_USER_MANUAL_ITEN.pdf2MB
