APIX6
PROLIGHTS
discontinued

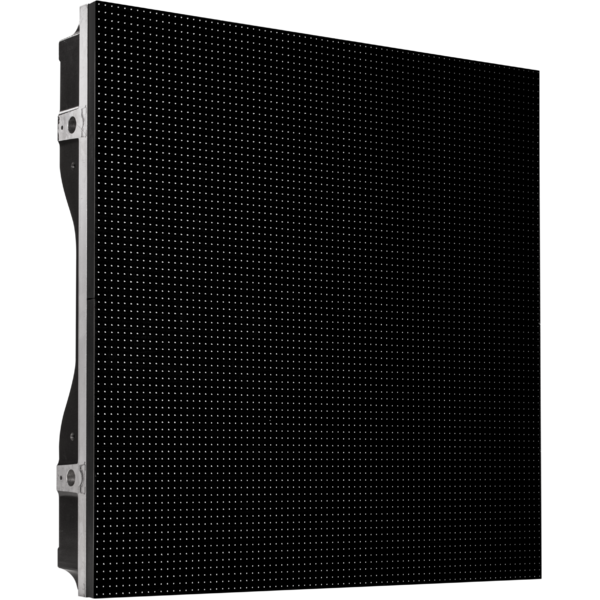

Apix 6

ORDER CODE: APIX6

6,2 mm pixel pitch indoor rental LED screen

In this fast-paced market, the Alphapix family keep ahead of the game by consistently delivering top-quality images with the latest high-resolution indoor LED displays. The Alphapix family use black-faced SMD LED for high-contrast and superb colour consistency in a robust and lightweight die-cast aluminium housing. The frame and fast interlocking system create a seamless image with minimal setup time. To deliver the perfect image, the Alphapix series features a high refresh-rate, advanced greyscale properties and automatic image correction along with a >140° viewing angle.

Main features:

  • Rental-friendly die-cast aluminium housing
  • Black-face LED for high-contrast and superb colour consistency
  • Magnetic front access LED Display modules for easy and fast maintenance
  • Flicker-free on camera
  • High-performance video reproduction at every level of brightness
  • 140° viewing angle
  • CE and EMC certified by TUV
See variants CONFIGURATOR

PHOTO GALLERY

Apix 6
Apix 6
Apix 6
Apix 6
Apix 6

Technical specifications

VIDEO
  • LED source: SMD 2020 high-power FC black face
  • Pixel pitch: 6.2 mm
  • Panel resolution: 80x80pixels
  • Module resolution: 40x40pixels
  • Luminous flux: 1.200nit
  • Grayscale: 16 bit
  • Refresh rate ≥: 1.920Hz
  • Drive Mode: 1/8 scan, constan current
  • Vertical viewing angle: 140°
  • Horizontal viewing angle: 140°
  • LED density: 25.600LED/sqm
  • Dead Pixel Ratio: <0,002
  • LED avg life span: 100.000 h
ELECTRICAL
  • Power input/output: powerCON
  • Power supply: AC 110/230 V 50/60 Hz
  • Max power consumption (panel): 112,5W
  • Avg power consumption (panel): 37,5W
  • Max power consumption (sqm): 450W
  • Avg power consumption (sqm): 150W
  • Standby power consumption (pannello): 9,8W
  • Max rated current/panel:: AC 220 V / 0,5 A
  • Max power output: 13modules
  • Working temperature: -10 ~ +40°C
  • Working humidity: 10 - 90%
CONTROL
  • Control protocol: Novastar
  • Signal input: RJ45
  • Signal output: RJ45
MECHANICS
  • Module size (WxH): 250x250mm / 9.84''x9.84''
  • Panel size(WxHxD): 500x500x90mm / 19.69''x19.69''x3.54''
  • Vertical hanging system: built-in aliscaf clamp support
  • Connection: seamless locking system
  • Panel weight: 8kg / 17.64lbs
  • Weight per square meter: 32kg / 70.55lbs
  • Hanging Panel Quantity ≤: 20
PHYSICAL
  • IP rating: IP40
  • Cooling: fan-free with natural convection
  • Housing: Die-cast aluminium housing
  • Finish: black
CERTIFICATIONS / REPORTS
  • Compliance: CE

Versions

Accessories & Related Products

AP2366CASE
AP2366CASE
(Optional)
Flight case for 6pcs APIX series LED display, 600x755x795 mm
AP236XJ
AP236XJ
(Optional)
Metal joint used to connect 4 APIX2, 3, 6, 4T, modules, M10 hole for clamp
APOS
APOS
(Optional)
Shackle for APIX hanging systems, max load 200 kg
AP236ACL01
AP236ACL01
(Optional)
Power cable for APIX2, APIX3, APIX6, L.110 cm
AP236DCL01
AP236DCL01
(Optional)
Data cable for APIX2, APIX3, APIX6, assembled with RJ45, L.110 cm
APIX600GSB2
APIX600GSB2
(Optional)
APIX ground stacking system, PRO version (up to 6 m), double base
APIX600GSBS
APIX600GSBS
(Optional)
APIX ground stacking system, PRO version (up to 6 m), queer back support
APIX600GSBV
APIX600GSBV
(Optional)
APIX ground stacking system, PRO version (up to 6 m), base unit vertical

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualApix6_USER_MANUAL_unde.pdf(24/09/2024)6MB
User manualApix6_Led_screen_connector_compatibi.pdf(14/10/2025)879KB
User manualApix6_Led_Screen_User_Manual_EN.pdf(21/10/2022)3MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DApix6_CAD_2D.dwg(17/05/2021)2MB
Technical drawingApix6_TECHNICAL_DRAWING.pdf(17/05/2021)427KB

Tech docs

File name File size Download

Software

File name File size Download
Exploded spare parts2015-0730-2 - 1920 Hz.zip(11/03/2017)5KB
Exploded spare parts2016-0347-1 - 3840 Hz.zip(11/03/2017)7KB
Exploded spare parts2016-0561-1 - 3840 Hz.zip(11/03/2017)7KB
Exploded spare parts2016-0827-1 - 3840 Hz.zip(11/03/2017)5KB
Exploded spare parts2016-0944-1 - 3840 Hz.zip(11/03/2017)7KB

Firmware

Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0 STABLE 18/06/2018
