ARCLED1101Q
PROLIGHTS
end of life

ARCLED1101Q

ORDER CODE: ARCLED1101Q

Main features:

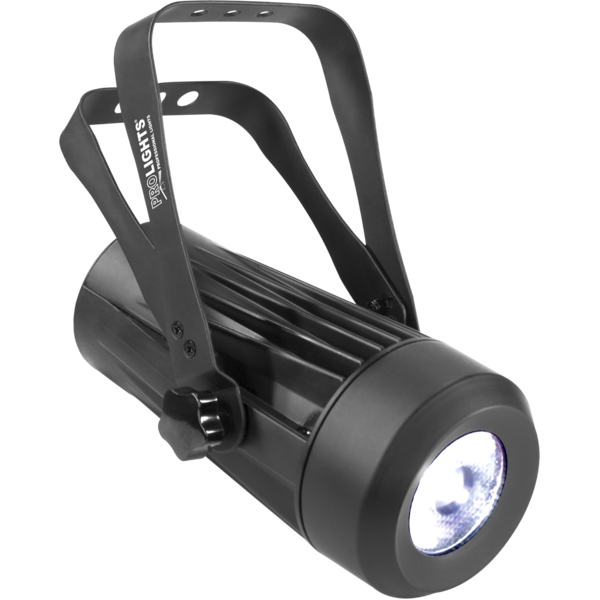

    ARCLED1101Q is a new-concept light device, designed to house 1x10W high-power RGBW FullColour LED in a super-slim body. The multi-chip RGBW/FC colour calibration system offers an advanced chromatic generation and a full control over colour saturation and temperature. The brand-new optic design features an homogeneous mixing of the 4 primary colours (RGBW) inside a single lens avoiding the view of the pixels or RGB shadows. The compact sizes makes ARCLED1101Q suitable for all kind of environments or lighting project in limited spaces as truss lighter (10° light beam). accent luminaire or blinder.

    Light source and optics
    • 1 x 10W high-efficiency CREE RGBW FullColour
    • Lumen: 269
    • Lux: 302@2m
    • Energy-saving LEDs employed, with more vivid colours and lower power consumption than traditional lamps
    • Colour synthesis: 4 in1 RGBW mixing for tones, temperature and saturation control
    • White temperature presets: 3200K~10000K
    • Beam Angle: 11°
    • Higher optic efficiency (>85%)
    • LEDs average life span: > 50.000 hours


    Electronics and features
    • Several DMX selectable configurations (3, 4, 5, 6 and 9 channels) for advanced or basic controlling
    3 channels: RGB
    3 channels: HSV
    4 channels: RGB, dimmer
    4 channels: RGBW
    5 channels: RGBW, dimmer
    6 channels: RGBW, dimmer, strobe
    9 channels: RGBW, dimmer, macro, strobe, auto programs, programs speed
    • LED display user interface for auto programs execution, static colour mode, creation of custom shows, colour calibration presets
    • Master/Slave mode for stand-alone operations
    • Linear and “step-less” transition between DMX values
    • Flicker free operations (400Hz)
    • Silent operations, due to natural cooling of the peculiar chassis and to absence of fans

    Structure and power supply
    • Sturdy die-cast aluminium body conceived for long-time durability and demanding applications
    • Internal protection: IP20
    • Power (shuko) and data (xlr-3p) cables included
    • Double hanging bracket suitable for safe hanging and for floor positioning
    • Power unit: 100-240V 50/60Hz
    • Max power consumption: 16W
    • Weight: 1 kg
    • Dimensions (WxHxD): 124x80x212 mm
