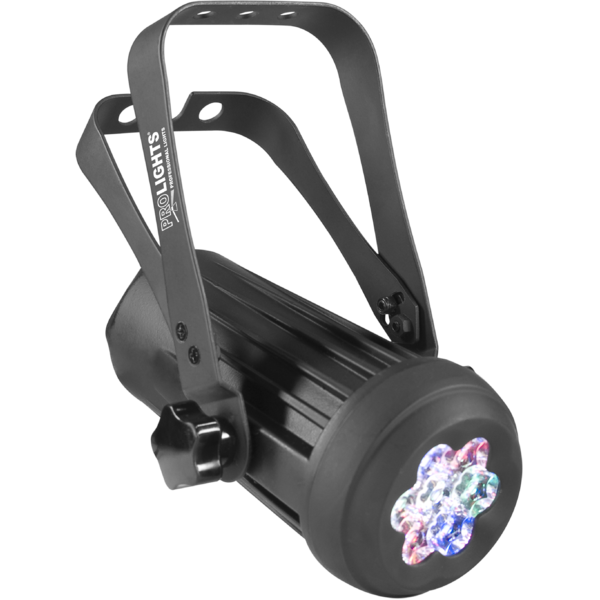

Arcled 1107RGBW

ORDER CODE: ARCLED1107RGBW

Main features:

---

ARCLED1107 is a new-concept light device, designed to renew lighting projects in confined spaces. Despite its diminutive dimensions (only 17x6,5 cm), ARCLED1107 has an amazing light output due to its 7 high-efficiency 1W LEDs and a large chromatic flexibility allowed by RGBW colour mixing. The sleek design, the robust aluminium housing, the DMX and manual control make this device suitable for all kind of application like truss warmer, casting accent colour in segments on a stage set, blinder, furniture lighting.

Light source and optics

• 7 x 1W high-efficiency CREE LEDs: (2 red, 2 green, 2 blue, 1 white)
• Lumen: 160
• Lux@2m: 260@2m
• Energy-saving LEDs employed, with more vivid colours and lower power consumption than traditional lamps
• Colour synthesis: RGBW colour mixing (>16 million colours) for a limitless colour range
• White temperature presets: 3200K~8500K
• Installed optics: 18°
• Beam angle: 20°
• Field angle: 37,5°
• LEDs average life span: > 50.000 hours

Electronics and features

• Several DMX selectable configurations (3, 4 and 9 channels) for advanced or basic controlling
3 channels: RGB
4 channels: RGBW
9 channels: RGBW, dimmer, macro, strobe, auto programs, programs speed
• User interface through dip-switches for DMX addressing, manual control, auto-mode and selection of DMX mode
• Master/Slave mode for stand-alone operations
• Linear and “step-less” transition between DMX values
• Flicker free operations (400Hz)
• Silent operations, due to natural cooling of the peculiar chassis and to absence of fans

Structure and power supply

• Sturdy die-cast aluminium body conceived for long-time durability and demanding applications
• Internal protection: IP20
• Power (shuko) and data (xlr-3p) cables included
• Double hanging bracket suitable for safe hanging and for floor positioning
• Power unit: 100-240V 50/60Hz
• Max power consumption: 10W
• Weight: 0,8 kg
• Dimensions (WxHxD): 110x65x175 mm
