ARCLED338PIX
PROLIGHTS
end of life

Arcled 338PIX

ORDER CODE: ARCLED338PIX

Main features:

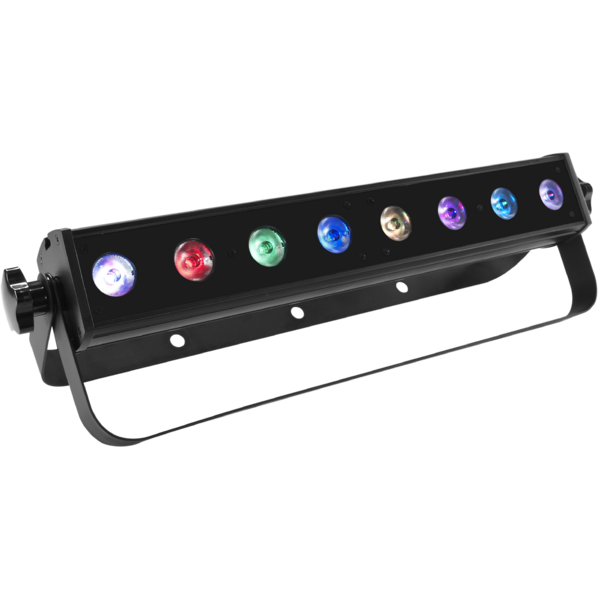

    ArcLed338Pix is a linear projector, featuring 8 LEDs (3W each) with RGB/Full Color synthesis. Its modular design and the cutting-edge digital "Pixel control" technology allow to setup more projector in a led-matrix with synchronized operations for endless graphic and stage solutions. The "Pixel" control mode allows to drive each Fullcolor LED separately to create low resolution screens, large dynamic ledwalls and chromatic patterns.
    TriColor optical group makes ArcLed338Pix suitable even for professional architectural applications where a perfect chromatic expression is needed.

    Light source and optics
    • 8 x 3W high-efficiency CREE RGB/FC LED technology
    • Lumen: 650
    • Lux@2m: 1500@2m
    • Energy-saving LEDs employed, with more vivid colours and lower power consumption than traditional lamps
    • Colour synthesis: Tricolor colour mixing (>16 million colours) for a limitless colour range
    • White temperature presets: 3200K~10000K
    • Installed optics: 16°
    • Beam angle: 17°
    • Field angle: 32°
    • LEDs average life span: >50'000h

    Electronics and features

    • Several DMX selectable configurations (3, 4, 10, 24 channels) for advanced or basic controlling
    3 channels: RGB
    3 channels: HSV
    4 channels: RGB, dimmer
    10 channels: Dimmer, RGB, Colour Macros, strobe, auto programs, programs speed, Dimming curve, block selection
    24 channels: RGB (each pixel)
    • LCD display user interface for auto programs execution, static colour mode, creation of custom shows
    • 5 different dimming available curves
    • Master/Slave mode for stand-alone operations
    • Linear and “stepless” transition between DMX values
    • Flicker free operations (400Hz)
    • Cooling: forced ventilation with adjustment of fan speed from LCD user interface

    Structure and Power supply

    • High resistance and flame retardant polymer case in black colour
    • Internal Protection: IP33
    • Power cable (shuko 1,5 mt) included
    • Double hanging bracket suitable for safe hanging and for floor positioning
    • Power unit: 100-240V 50/60Hz
    • Power output to link more units in a chain: up to 24 fixtures at 230V
    • Max power consumption: 40W
    • Weight: 3,1 kg
    • Dimensions (WxHxD): 575x89x160 mm

PHOTO GALLERY

Technical specifications

Versions

Accessories & Related Products

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualArcled338pix_USER_MANUAL_ITEN.pdf2MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DArcled338pix_CAD_2D.dwg307KB
Technical drawingArcled338pix_TECHNICAL_DRAWING.pdf86KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware
