ARCLED7314TRI
PROLIGHTS
discontinued

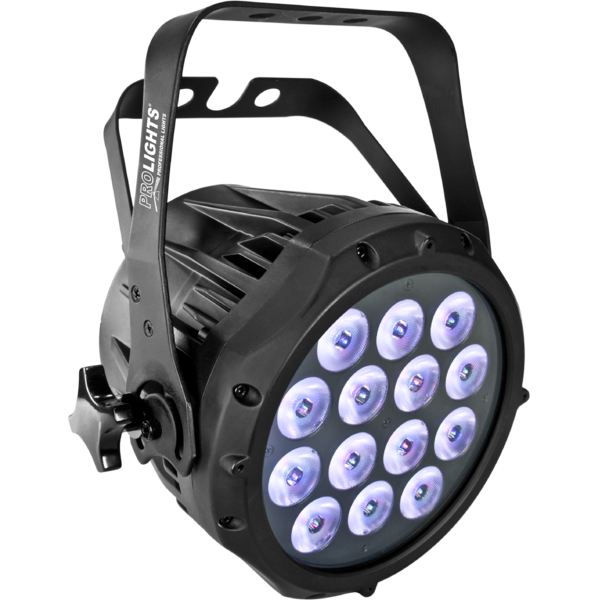

ARCLED7314TRI

Main features:

    ARCLED7314TRI is a professional luminaires featuring 14 RGB/Full Color 3W LEDs fitted into a single matrix.
    ARCLED7314TRI is the first choice in terms of quality and performance for professionals light-design projects in medium and large size environments.

    The advantages of Tricolor technology:
    • Perfect colour mixing and saturation, even in short-range projections
    • Unwanted RGB shadows are completely eliminated; this makes ARCLED7314 suitable for theatrical, studios and architectural applications
    • Perfect for frontal video recordings: colours are mixed into the optical system, avoiding single Red, Green, Blue colour spreads

    Light source and optics

    • 14 x 3W high-efficiency CREE RGB/FC LEDs
    • Lumen: 950
    • Lux@2m: 2350@2m
    • Energy-saving LEDs employed, with more vivid colours and lower power consumption than traditional lamps
    • Colour synthesis: Tricolor colour mixing (>16 million colours) for a limitless colour range
    • White temperature presets: 3200K~10000K
    • Installed optics: 16°
    • Beam angle: 17°
    • Field angle: 32°
    • LEDs average life span: >50'000h

    Electronics and features

    • Several DMX selectable configurations (3, 4, 5, 10 channels) for advanced or basic controlling
    3 channels: RGB
    3 channels: HSV
    4 channels: RGB, dimmer
    5 channels: RGB, dimmer, strobe
    10 channels: RGB, dimmer, macro, strobe, auto programs, programs speed, dimmer curve, ID address
    • LED display user interface for auto programs execution, static colour mode, creation of custom shows, colour calibration presets
    • 5 different dimming available curves
    • Master/Slave mode for stand-alone operations
    • Linear and “step less” transition between DMX values
    • Flicker-free operations (400Hz)
    • Silent operations, due to natural cooling of the peculiar chassis and to absence of fans

    Structure and Power supply

    • Sturdy die-cast aluminium body conceived for long-time durability and demanding applications
    • Frontal tempered glass panel
    • Internal Protection: IP67 (IP) - IP54 (TZ)
    • Pressure and temperature balance through GORE membrane vents
    • Power (shuko) and data (xlr-3p) adapter cables included
    • Double hanging bracket suitable for safe hanging and for floor positioning
    • Power unit: 100-240V 50/60Hz
    • Power output to link more units in a chain: up to 24 fixtures at 230V
    • Max power consumption: 52W
    • Weight: 4,8 kg
    • Dimensions (WxHxD): 245x205x245 mm

PHOTO GALLERY

Technical specifications

Versions

Code
Connections
IP rate
ARCLED7314TRIIP
ARCLED7314TRIIP (DISCONTINUED)
IPCON
IP67
ARCLED7314TRITZ
ARCLED7314TRITZ (DISCONTINUED)
Neutrik
IP54

Accessories & Related Products

ARC7314RBD
ARC7314RBD
(optional)
Round barndoor for spot-like effect, for ARCLED7314TRI
ARCEXAC3
ARCEXAC3
(optional)
IP67 power extension cable, compatible with outdoor (IP) ARCLED projectors
ARCEXDC3
ARCEXDC3
(optional)
IP67 DMX extension cable, comp. with outdoor (IP) ARCLED projectors
