ARCLED7361ZOOM
PROLIGHTS
discontinued

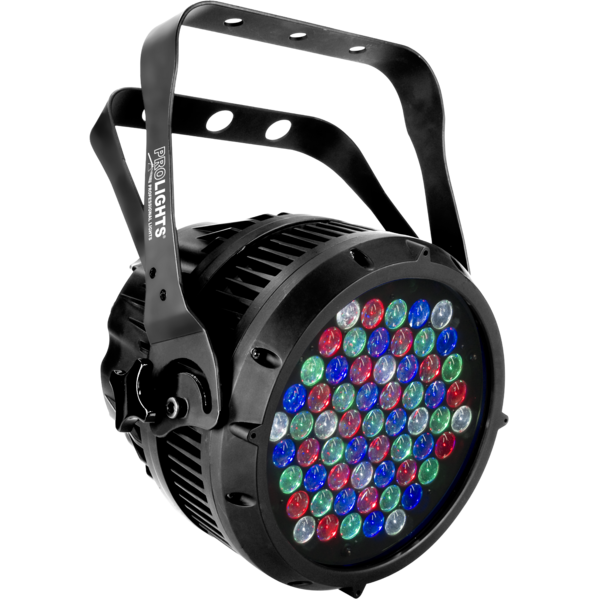

ARCLED7361ZOOM

Main features:

    ARCLED7361ZOOM is a unique LED luminaire in LED lighting range for its performance and technological contents. It has been conceived to innovate the concept of LED source applied to lighting sector, featuring the innovative zoom technology for a linear passage from 8° spot to 40° wide beam.
    Optical section is composed by a brand new elliptical lens placed on a motorized scrolling panel.
    The great flexibility of control, combined to its powerful output (61x3W RGBW LEDs), make ARCLED7361ZOOM an outstanding tool for professional Light-Designers to fulfill lighting projects in large outdoor events (IP67 rated), roadshows, theatres, architectural installations.

    Light source and optics
    • 61 x 3W high-efficiency CREE RGBW LEDs (17 red, 17 green, 17 blue, 10 white)
    • Lumen: 3500
    • Lux: 15500@2m
    • Energy-saving LEDs employed, with more vivid colours and lower power consumption than traditional lamps
    • Colour synthesis: RGBW colour mixing (>16 million colours) for a limitless colour range
    • White temperature presets: 3200K~10000K
    • Beam angle: 8°-40° Zoom
    • Electronic linear zoom with motorized and scrolling lens panel
    • LEDs average life span: >50'000h

    Electronics and features
    • Several DMX configurations selectable (3, 4, 5, 6, 12 channels) for advanced or basic controlling
    3 channels: RGB
    3 channels: HSV
    4 channels: RGB, dimmer
    4 channels: RGBW
    5 channels: RGBW, dimmer
    6 channels: RGBW, dimmer, strobe
    12 channels: RGBW, dimmer, macro, strobe, auto programs, programs speed, dimmer curve, zoom, Zoom reset
    • LED display user interface for auto programs execution, static colour mode, creation of custom shows, colour calibration presets
    • 5 different dimming available curves
    • Master/Slave mode for stand-alone operations
    • Linear and “step less” transition between DMX values
    • Flicker-free operations (400Hz)
    • Silent operations, due to natural convection cooling of the peculiar chassis and to absence of fans

    Structure and Power supply
    • Sturdy die-cast aluminium body conceived for long-time durability and demanding applications
    • Frontal tempered glass panel
    • Internal Protection: IP67 (IP) - IP54 (TZ)
    • Pressure and temperature balance through GORE membrane vents
    • Power (shuko) and data (xlr-3p) adapter cables included
    • Double hanging bracket suitable for safe hanging and for floor positioning
    • Power unit: 100-240V 50/60Hz
    • Working temperatures: -40/45°
    • Power output to link more units in a chain: up to 12 fixtures at 230V
    • Max power consumption: 180W
    • Weight: 9 kg
    • Dimensions (WxHxD): 302x237x311 mm

PHOTO GALLERY

Technical specifications

Versions

Code
Connessioni Elettriche
Signal Connections
IP rate
ARCLED7361ZOOMIP
ARCLED7361ZOOMIP (DISCONTINUED)
IP cable
IP cable
IP67
ARCLED7361ZOOMTZ
ARCLED7361ZOOMTZ (DISCONTINUED)
Powercon
DMX in/out
IP54

Accessories & Related Products

ARCEXAC3
ARCEXAC3
(optional)
IP67 power extension cable, compatible with outdoor (IP) ARCLED projectors
ARCEXDC3
ARCEXDC3
(optional)
IP67 DMX extension cable, comp. with outdoor (IP) ARCLED projectors

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualArcled7361zoomip_USER_MANUAL_ITEN.pdf3MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware
