ARCLED7513QZOOM
PROLIGHTS
discontinued

ARCLED7513QZOOM

Main features:

    ARCLED7513QZOOM is a new generation ParLED zoom, designed for rental-company, with a multi-purpose concept suitable for both stage and architectural lighting, in environments of large and medium size, both indoors and outdoors. ARCLED7513QZOOM offers unprecedented performance, employing Osram Ostar LED 14x15W RGBW/FullColor and a high efficiency 6°-30° optical zoom system for applications such as washer, beamer or both in the same stage-plot.The color calibration system, 2800K°-10000K° built-in white preset, 5 selectable dimmer curves and the total absence of fans, makes ARCLED7513QZOOM suitable for light design with high demanding requirements.

    Light source and optics
    • 14x15W Osram Ostar RGBW/FullColor LEDs
    • Lumen: 3100lm
    • Lux: 3926@4m
    • Energy-saving LEDs employed, with more vivid colors and lower power consumption than traditional lamps
    • Color synthesis: RGBW Fullcolor mixing for a limitless color range
    • White temperature presets: 2800K~10000K
    • Beam angle: 6°-30° Zoom
    • Field angle: 11°-43°Zoom
    • Electronic linear zoom with motorized and scrolling lens panel
    • LEDs average life span: >50'000h

    Electronics and features
    • Several DMX configurations selectable (3, 4, 5, 6, 7, 12, 17 channels) for advanced or basic controlling
    3 channels: RGB
    3 channels: HSV
    4 channels: RGBW
    4 channels: Dimmer, RGB
    5 channels: Dimmer, RGBW
    6 channels: Dimmer, RGBW, strobo
    7 channels: Dimmer, RGBW, zoom, zoom reset zoom, zoom reset
    12 channels: Dimmer, RGBW, macro, strobo, auto, auto speed, dimmer curve, zoom, zoom reset
    17 channels: Dimmer, dimmer fine, RGBW, RGBW fine, macro, strobe, auto, auto speed, dimmer curve, zoom, zoom reset
    • LED display user interface for auto programs execution, static color mode, creation of custom shows, color calibration presets
    • 5 different dimming available curves
    • Master/Slave mode for stand-alone operations
    • Linear and “step less” transition between DMX values
    • Flicker-free operations (400Hz)
    • Silent operations, due to natural convection cooling of the peculiar chassis and to absence of fans

    Structure and Power supply
    • Sturdy die-cast aluminium body conceived for long-time durability and demanding applications
    • Frontal tempered glass panel
    • Internal Protection: IP67 (IP) - IP54 (TZ)
    • Pressure and temperature balance through GORE membrane vents
    • Power (shuko) and data (xlr-3p) adapter cables included
    • Double hanging bracket suitable for safe hanging and for floor positioning
    • Power unit: 100-240V 50/60Hz
    • Working temperatures: -40/45°
    • Power output to link more units in a chain: up to 12 fixtures at 230V
    • Max power consumption: 193W
    • Weight: 8,1 kg
    • Dimensions (WxHxD): 283x236x348 mm

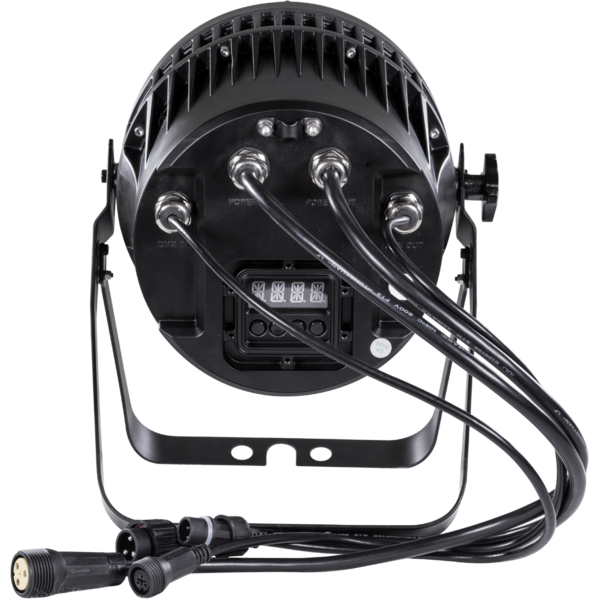

PHOTO GALLERY

Technical specifications

Versions

Code
Connections
IP rate
ARCLED7513QZOOMIP
ARCLED7513QZOOMIP (DISCONTINUED)
IPCON
IP67
ARCLED7513QZOOMTZ
ARCLED7513QZOOMTZ (DISCONTINUED)
Neutrik
IP54

Accessories & Related Products

ARCEXAC3
ARCEXAC3
(Optional)
ARCEXDC3
ARCEXDC3
(Optional)

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualArcled7513qzoom_USER_MANUAL_ITEN.pdf7MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

Tech docs

File name File size Download

Software

File name File size Download

Firmware
