ARCLED7513VWZ
PROLIGHTS
discontinued

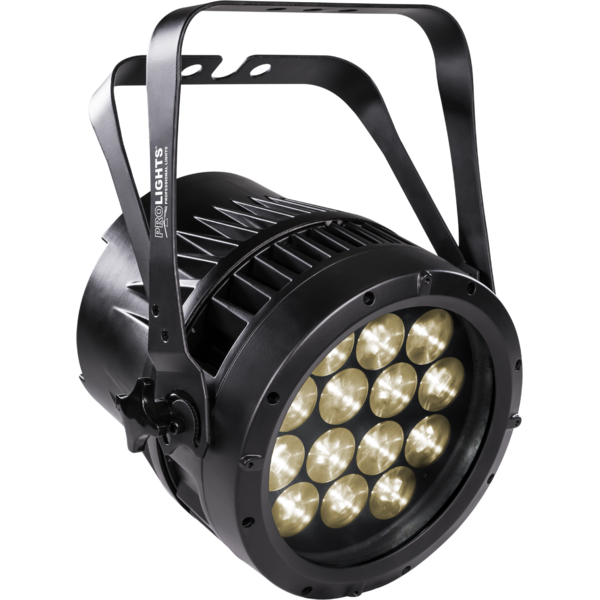

ARCLED7513VWZ

ARCLED7513VWZ offers unprecedented performance, employing 14x15 W Variable White LEDs and a high efficiency 6°-30° optical zoom system for applications such as washer, beamer or both in the same stage-plot. The color calibration system, 2800K°-10000K° built-in white preset, 5 selectable dimmer curves and the total absence of fans, makes this fixture suitable for light design with high demanding requirements.

Main features:

    {DESC_CARATTERISTICHE}
See variants

PHOTO GALLERY

ARCLED7513VWZ
ARCLED7513VWZ
ARCLED7513VWZ
ARCLED7513VWZ
ARCLED7513VWZ
ARCLED7513VWZ
ARCLED7513VWZ
ARCLED7513VWZ
ARCLED7513VWZ
ARCLED7513VWZ

Technical specifications

LIGHT SOURCE
  • Source: 14x15W Warm White + Cold White Osram Ostar LED
  • CCT: 3000K~6000
  • Luminous flux: 3222
  • Lux: 8621lx @3 m full
  • CRI: WW: >97, CW: >70
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom: 6-43° motorised linear zoom
  • Beam angle: 6-30°
  • Field angle: 11-43°
COLOUR SYSTEM
  • Colour mixing: tunable white
  • CCT: linear CTO correction 2.700 K ~ 6.000 K
  • White presets: 3000~6000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 1/6/10channel
  • Display: LED display user interface
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 5 selectable dimming modes available
  • Operating temperature: -40° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 170W
  • Output (at 230V): 12 units on a single power line
PHYSICAL
  • IP rating: IP67 (IP) - IP54 (TZ)
  • Cooling: pressure and temperature balance through GORE membrane vents
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: 3p IN/OUT
  • Dimensions (WxHxD): 283x236x348mm / 11.14''x9.29''x13.7''
  • Weight: 8,6kg / 18.96lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM

Versions

Code
Power Connections
Signal Connections
IP rate
ARCLED7513VWZIP
ARCLED7513VWZIP (DISCONTINUED)
IP cable
IP cable
IP67
ARCLED7513VWZTZ
ARCLED7513VWZTZ (DISCONTINUED)
Powercon
DMX in/out
IP54

Accessories & Related Products

ARCEXAC3
ARCEXAC3
(optional)
ARCEXDC3
ARCEXDC3
(optional)

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualArcled7513vwz_USER_MANUAL_ITEN.pdf9MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware
