ARCLED9372RGB

Main features:

---

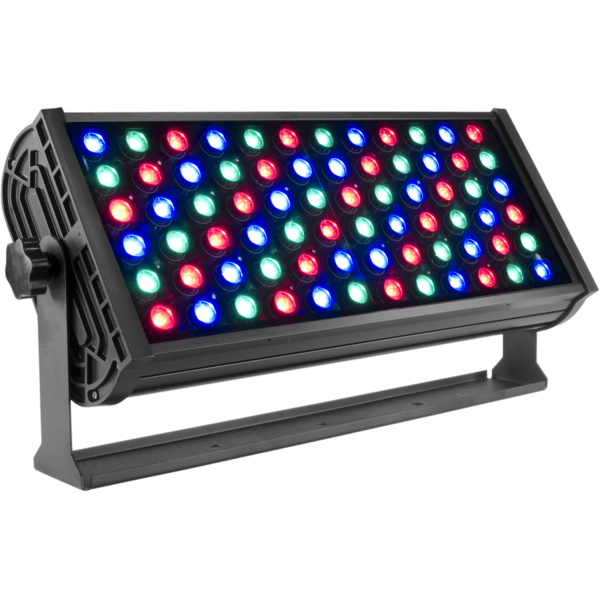

Professional RGB washlight projector, based on LED technology, for indoor/outdoor applications.
Light source and optics
• 72 x 3W high-efficiency LEDs: (24 red, 24 green, 24 blue)
• Energy-saving LEDs employed, with more vivid colours and lower power consumption than traditional lamps
• Colour synthesis: RGB Colour mixing (>16million colours) for a limitless colour range
• High efficiency precise optics
• Projection angle: 30° (15°, 45°, 60° available on demand)
• LEDs average life span: > 75'000 hours
Electronics and features
• Several DMX selectable configurations (3, 4, 5 and 9 channels) for professional or simplified controlling 3 channels: RGB3 channels: HSV (Hue, Saturation, Value) 4 channels: RGB, dimmer 5 channels: RGB, dimmer, strobe 9 channels: RGB, dimmer, strobe, macro, auto programs, programs speed, ID addressing
• Manual control of values and programs through the LED display menu
• Automatic mode with built-in programs
• Master/Slave mode for stand alone operations
• Linear and “stepless” transition between DMX values
• Flicker free operations
• Silent operations and virtually no maintenance due to natural convection cooling system (no fans)
Structure and power supply
• Sturdy die-cast aluminium body conceived for long-time durability and demanding applications
• IP66 protection rate and connections (standard SHUKO and XLR 3p adapters included)
• Double hanging bracket suitable for safe hanging and as a floor stand
• Adjustable barn doors to direct light output (ARCLED9372BD not included)
• Power unit: 100-240V 50/60Hz
• Power output signal: up to 15 units at 230V
• Consumption: 240W
• Weight: 9Kg
• Dimensions (WxHxD): 611x228x200 mm
