ARK106MP
DAD

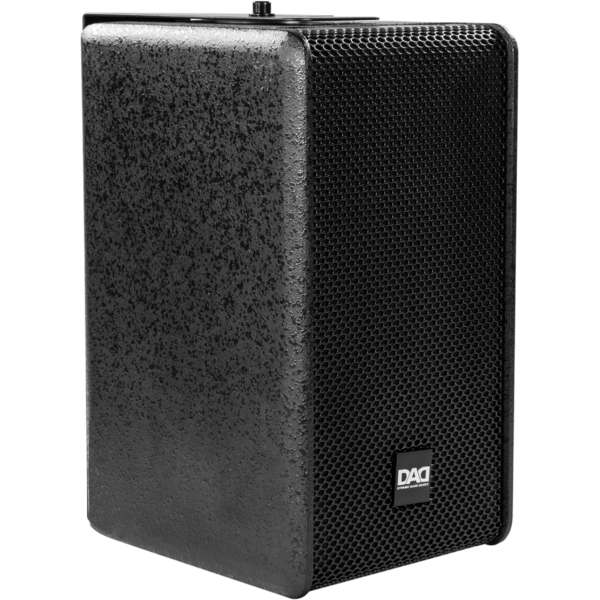

ARK106MP

2-way passive loudspeaker, 120 W AES, 11

2-way passive loudspeaker, 120 W AES, 116dB SPL

Main features:

  • Low frequency: 6'' woofer/1.5'' v.c.
  • High frequency: 1'' driver / 1'' v.c.
  • Frequency response: 75-18000 Hz (±3dB)
  • ARK106 full range speakers are suitable for small installations or can be used as satellites in combination with the passive or active sub.
  • The DAD logo on the grille can be rotated rapidly for the both vertically and horizontally installation.
  • Birch plywood enclosure.

PHOTO GALLERY

Technical specifications

LOUDSPEAKER
  • System type: passive 2 way
COMPONENTS
  • Low frequency: 6'' woofer/1.5''v.c.
  • High frequency: 1'' driver/1''v.c.
FEATURES
  • AES/program power: 120/240W
  • SPL max: 116dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • Sensitivity: 92dB @1W/1m (free field)
  • Impedance: 16 Ohm
  • SPL cont/peak: 110/116dB @1m (free field)
  • Frequency response: 75-18000Hz (±3dB)
  • Coverage angle HxV: 140x140°
  • Cross over frequency: 2500Hz
  • Protection: H.F. signal compression
  • Suggest HPF range: 120/160Hz
  • Recommended amplifier up to: 240W /16Ohm
INPUT/OUTPUT CONNECTORS
  • Input signal: 4pole - terminal clamp IN/OUT
CABINET CONSTRUCTION
  • Cabinet material: 12mm / 0.47'' plywood
  • Sospension system: wall brackets (included)
  • Angle: 7.5° trapezoidal taper
PHYSICAL
  • Dimensions (WxHxD): 201x340x233mm / 7.91''x13.39''x9.17''
  • Weight: 6.5kg / 14.33lbs

Versions

Code
Finishing
ARK106MPBK
ARK106MPBK
Black
ARK106MPWH
ARK106MPWH
White

Accessories & Related Products

ARKWMS10
ARKWMS10
(optional)

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualArk106mp_USER_MANUAL.pdf6MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download
SoftwareFile set up ARK - IDEA Series16KB
