ARK112SA
DAD

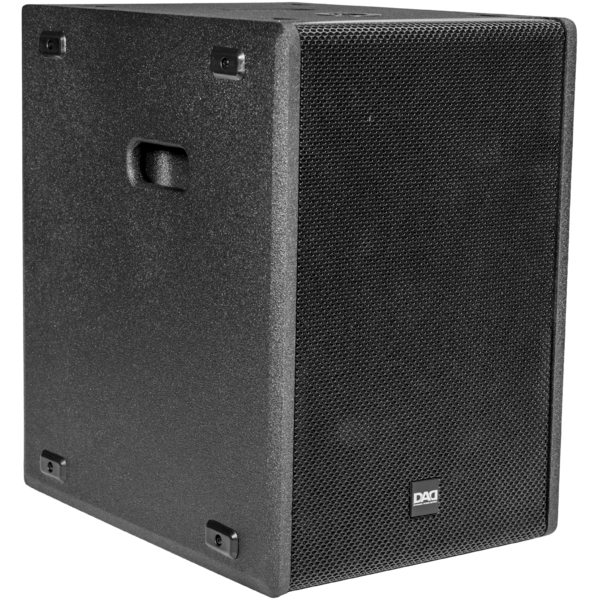

Ark 112SA

Active subwoofer, LF 12'' 700W/4Ohm, 125dB SPL, OUT 700W/4Ohm

Bass-reflex active subwoofer, 2x700W/4Ohm D-class amplifier, 124dB SPL

Main features:

  • Built-in DSP: fully adjustable with USB port.
  • ARK112SA amplified subwoofer speaker can drive up to 2 column speakers of the ARK column series plus an additional ARK112SP passive subwoofer.
  • Signal connection between the subwoofer and medium-high column units via a connector integrated with the loudspeaker.
  • The DAD logo on the grille can be rotated rapidly for the both vertically and horizontally installation.
  • Birch plywood enclosure.
See variants

PHOTO GALLERY

Ark 112SA
Ark 112SA
Ark 112SA
Ark 112SA
Ark 112SA
Ark 112SA
Ark 112SA
Ark 112SA
Ark 112SA
Ark 112SA
Ark 112SA
Ark 112SA
Ark 112SA

Technical specifications

LOUDSPEAKER
  • System type: active subwoofer
COMPONENTS
  • Low frequency: 12'' woofer/3''v.c.
  • Built-in amp LF/HF: 700/700 W/4Ohm (Continuous Power - EIA 1 kHz 1% THD)
ACOUSTICAL SPECIFICATIONS
  • SPL cont/peak: 118/124dB @1m (free field)
  • Frequency response: 40-200Hz (±3dB)
  • Coverage angle HxV: ° omnidirectional
  • Suggest LPF range: 120/200Hz
ELECTRONICS SPECIFICATIONS
  • Amplifier: digital
  • Power: 700 +700W /4Ohm
  • Input sensitivity: 4 dBu (1,228Vrms) adjustable
  • Protection: limiter temp.
  • User controls: mic, line, master, eq LF-HF, DSP
  • Built-in DSP: 56bit - sampling rate 48kHz
  • Operating voltage/frequency: 220 V~240 V/50 Hz
INPUT/OUTPUT CONNECTORS
  • Input signal: XLR IN/OUT
  • Output signal: jack 6.35 mm, 4 pole IN/OUT
  • Data: USB port
  • Power connection: powerCON IN/OUT
CABINET CONSTRUCTION
  • Cabinet material: 15mm / 0.59'' plywood
  • Sospension system: support with signal connection
  • Handles: 2 on side, 1 top
PHYSICAL
  • Dimensions (WxHxD): 362x520x470mm / 14.25''x20.47''x18.5''
  • Weight: 24.1kg / 53.13lbs

Versions

Code
Finishing
ARK112SABK
ARK112SABK
Black
ARK112SAWH
ARK112SAWH
White

Accessories & Related Products

ARK680SE
ARK680SE
(optional)
BAGARK112
BAGARK112
(optional)
Reinforced nylon bag for the protection/transport of one piece of ARK112

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetArk112sa_A4_DATASHEET.pdf789KB

User manual

File name File size Download
User manualArk112sa_USER_MANUAL.pdf5MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download
SoftwarePL2303 Driver (Driver win)2MB
SoftwareARK Editor Software75KB
SoftwareARK112SA preset690KB

Firmware
