ARK112SP
DAD

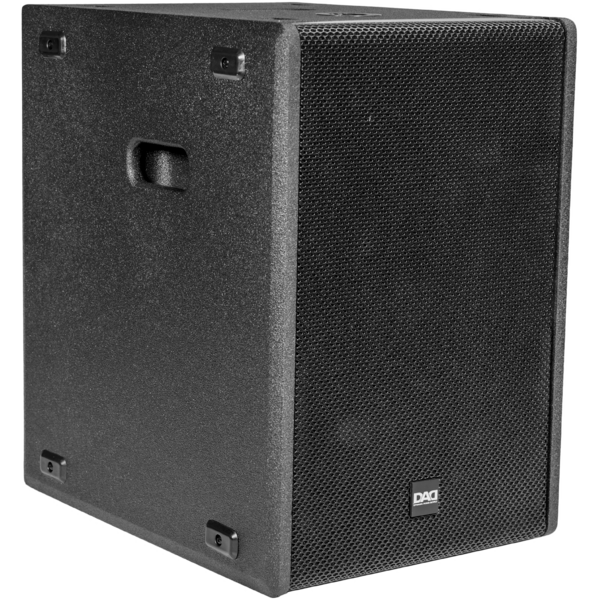

Ark 112SP

Bass reflex passive subwoofer, 400 W AES,125dB SPL

Bass reflex passive subwoofer, 400 W AES,125dB SPL

Main features:

  • Low frequency: 12'' woofer/3'' v.c
  • Frequency response: 40-200 Hz (±3dB)
  • ARK112SP subwoofer speaker is the ideal complement to column loudspeakers for reinforcing low notes.
  • Signal connection between the subwoofer and medium-high column units via a connector integrated with the loudspeaker.
  • The DAD logo on the grille can be rotated rapidly for the both vertically and horizontally installation.
  • Birch plywood enclosure.

PHOTO GALLERY

Technical specifications

LOUDSPEAKER
  • System type: passive subwoofer
COMPONENTS
  • Low frequency: 12'' woofer/3''v.c.
FEATURES
  • AES/program power: 400/800W
  • SPL max: 125dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • Sensitivity: 96dB
  • Impedance: 8
  • SPL cont/peak: 119/125dB @1m (free field)
  • Frequency response: 40-200Hz (±3dB)
  • Coverage angle HxV: ° omnidirectional
  • Suggest LPF range: 100/160Hz
  • Recommended amplifier up to: 800W
INPUT/OUTPUT CONNECTORS
  • Input signal: jack 6.35 mm, NL4 IN/OUT
CABINET CONSTRUCTION
  • Cabinet material: 15mm / 0.59'' plywood
  • Sospension system: support with signal connection
  • Handles: 2 on side, 1 top
PHYSICAL
  • Dimensions (WxHxD): 362x520x470mm / 14.25''x20.47''x18.5''
  • Weight: 21.9kg / 48.28lbs

Versions

Code
Finishing
ARK112SPBK
ARK112SPBK
Black
ARK112SPWH
ARK112SPWH
White

Accessories & Related Products

ARK680SE
ARK680SE
(Optional)
BAGARK112
BAGARK112
(Optional)
Reinforced nylon bag for the protection/transport of one piece of ARK112

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetArk112sp_A4_DATASHEET.pdf803KB

User manual

File name File size Download
User manualArk112sp_USER_MANUAL.pdf5MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download
SoftwareFile preset ARK column - IDEA18KB
