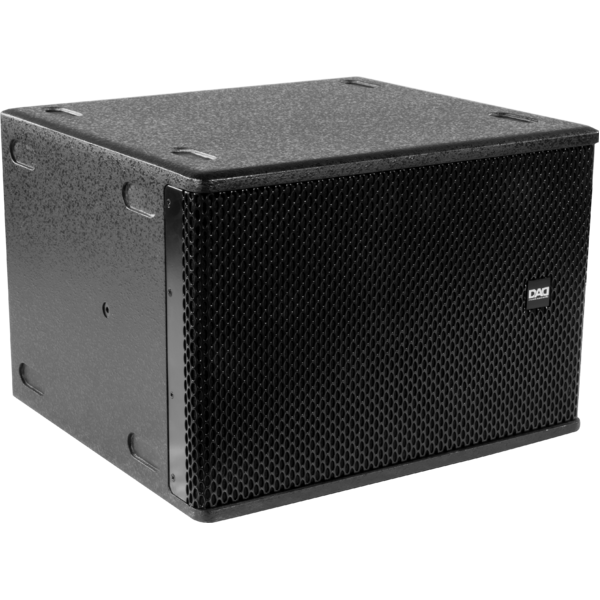

ARK12SA
DAD

ARK12SA

Active subwoofer, LF 12''. Amp. 700W/4 Ohm, 125dB SPL, OUT 700W/4Ohm

Bass-reflex active subwoofer, 2x700W/4Ohm D-class amplifier, 122dB SPL

Main features:

  • Built-in DSP: fully adjustable
  • Remote control with RJ45 port via ARK485UR accessory
  • ARK12SA amplified subwoofer speaker can drive up to 4 full range speakers of the ARK series plus an additional ARK12SP passive subwoofer.
  • The DAD logo on the grille can be rotated rapidly for the both vertically and horizontally installation.
See variants

PHOTO GALLERY

ARK12SA
ARK12SA
ARK12SA
ARK12SA

Technical specifications

LOUDSPEAKER
  • System type: active subwoofer
COMPONENTS
  • Low frequency: 12'' woofer/3''v.c.
  • Built-in amp: 700/700 W/4Ohm (Continuous Power - EIA 1 kHz 1% THD)
ACOUSTICAL SPECIFICATIONS
  • SPL cont/peak: 116/122dB @1m (free field)
  • Frequency response: 40-200Hz (±3dB)
  • Coverage angle HxV: ° omnidirectional
  • Suggest LPF range: 120/160Hz
ELECTRONICS SPECIFICATIONS
  • Amplifier: digital
  • Power: 700 +700W /4Ohm
  • Input sensitivity: 4 dBu (1,228Vrms) adjustable
  • Protection: limiter temp.
  • User controls: mic, line, master, eq LF-HF, DSP
  • Built-in DSP: 56bit - sampling rate 48kHz
INPUT/OUTPUT CONNECTORS
  • Input signal: XLR IN/OUT
  • Output signal: 2 x 4 pole
  • Data: USB port
  • Power connection: powerCON IN/OUT
CABINET CONSTRUCTION
  • Cabinet material: 15mm / 0.59'' plywood
  • Sospension system: wall brackets (not included)
PHYSICAL
  • Dimensions (WxHxD): 362x520x470mm / 14.25''x20.47''x18.5''
  • Weight: 23.8kg / 52.47lbs

Versions

Code
ARK12SABK
ARK12SABK
ARK12SAWH
ARK12SAWH

Accessories & Related Products

(Optional)
ARK485UR
ARK485UR
(Optional)
USB-RS485 interface for ARK DSP parameters management
ACCA5461
ACCA5461
(Optional)
M8x40mm. Eye-bolt suitable for suspension of loudspeakers
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualArk12sa_USER_MANUAL.pdf6MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DArk12sa_CAD_2D.dwg883KB
Technical drawingArk12sa_TECHNICAL_DRAWING.pdf158KB

Tech docs

File name File size Download

Software

Firmware
