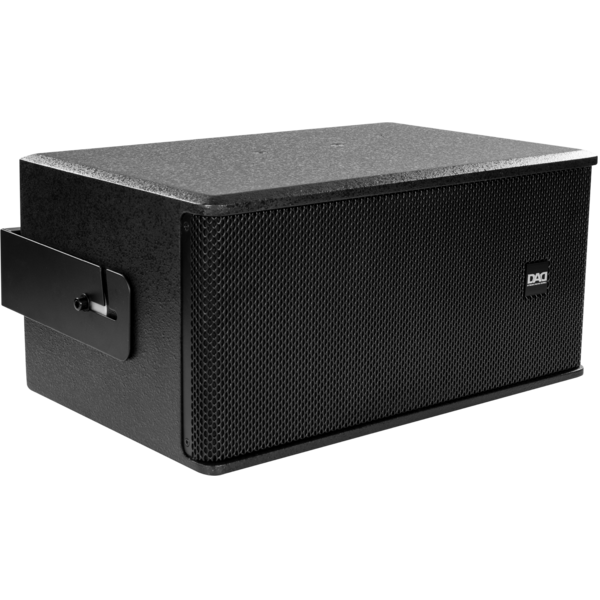

ARK208SP
DAD

ARK208SP

 Bass reflex passive subwoofer, 300 W AES, 122dB S

 Bass reflex passive subwoofer, 300 W AES, 122dB SPL

Main features:

  • Low frequency: 2x8'' woofer/2'' v.c.
  • Frequency response:50-200 Hz (±3dB)
  • ARK208SP subwoofer speaker is the ideal complement to the full range speakers for reinforcing low notes.
  • The DAD logo on the grille can be rotated rapidly for the both vertically and horizontally installation.
  • Birch plywood enclosure.

PHOTO GALLERY

Technical specifications

LOUDSPEAKER
  • System type: passive subwoofer
COMPONENTS
  • Low frequency: 2x8'' woofer/2''v.c.
FEATURES
  • AES/program power: 300/600W
  • SPL max: 122dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • Sensitivity: 95dB @1W/1m (free field)
  • Impedance: 8 Ohm
  • SPL cont/peak: 116/122dB @1m (free field)
  • Frequency response: 50-200Hz (±3dB)
  • Coverage angle HxV: ° omnidirectional
  • Suggest LPF range: 120/200Hz
  • Recommended amplifier up to: 600W /8Ohm
INPUT/OUTPUT CONNECTORS
  • Input signal: 4pole - terminal clamp IN/OUT
CABINET CONSTRUCTION
  • Cabinet material: 12mm / 0.47'' plywood
  • Sospension system: wall brackets (included)
PHYSICAL
  • Dimensions (WxHxD): 500x246x325mm / 19.69''x9.69''x12.8''
  • Weight: 13.5kg / 29.76lbs

Versions

Code
Finishing
ARK208SPBK
ARK208SPBK
Black
ARK208SPWH
ARK208SPWH
White

Accessories & Related Products

ARKWMS20
ARKWMS20
(optional)

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualArk208sp_USER_MANUAL.pdf6MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download
SoftwareFile set up ARK - IDEA Series16KB
