ARK403MP
DAD

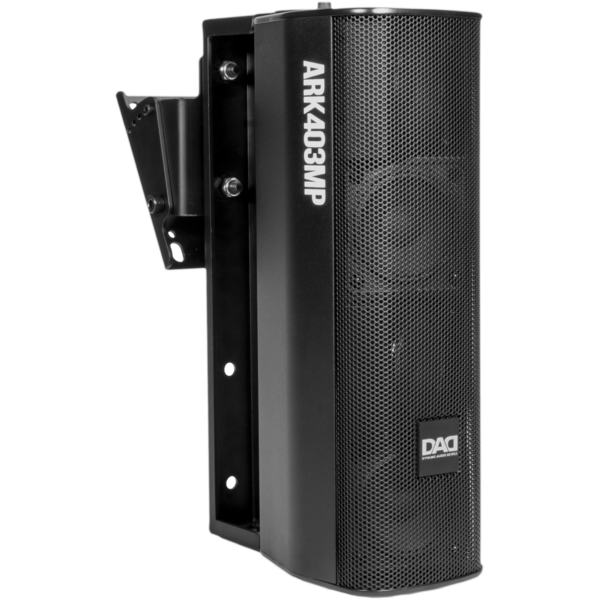

Ark 403MP

Wall mounted column loudspeaker, 100W AES, 114dB SPL

Wall mounted column loudspeaker, 100W AES, 114dB SPL

Main features:

  • Mid frequency: 4x3'' midrange / 0.75'' v.c.
  • Frequency response: 135-17000 Hz (±3dB)
  • Coverage angle HxV:115x20°
  • The modules with 4 transducers of 3” represent the solution to sound in deep environments particularly difficult, where quality and intelligibility are required.
  • Column modules with an off-axis transducer for wide horizontal dispersion.
  • Aluminium frame for a very robust yet lightweight design that fits in with any environment.

PHOTO GALLERY

Technical specifications

LOUDSPEAKER
  • System type: column loudspeaker
COMPONENTS
  • Mid frequency: 4x3'' midrange / 0.75'' v.c.
FEATURES
  • AES/program power: 100/200W
  • SPL max: 114dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • Sensitivity: 92dB @1W/1m (free field)
  • Impedance: 8 Ohm
  • SPL cont/peak: 108/114dB @1m (free field)
  • Frequency response: 135-17000Hz (±3dB)
  • Coverage angle HxV: 115x20°
  • Suggest HPF range: 140/180Hz
  • Recommended amplifier up to: 200W /8Ohm
INPUT/OUTPUT CONNECTORS
  • Input signal: 4pole IN/OUT
CABINET CONSTRUCTION
  • Cabinet material: 3mm / 0.12'' aluminum die cast
  • Sospension system: wall brackets (included)
PHYSICAL
  • Dimensions (WxHxD): 110x350x148mm / 4.33''x13.78''x5.83''
  • Weight: 5.8kg / 12.79lbs

Versions

Code
Finishing
ARK403MPBK
ARK403MPBK
Black
ARK403MPWH
ARK403MPWH
White
