ARK803AP
DAD

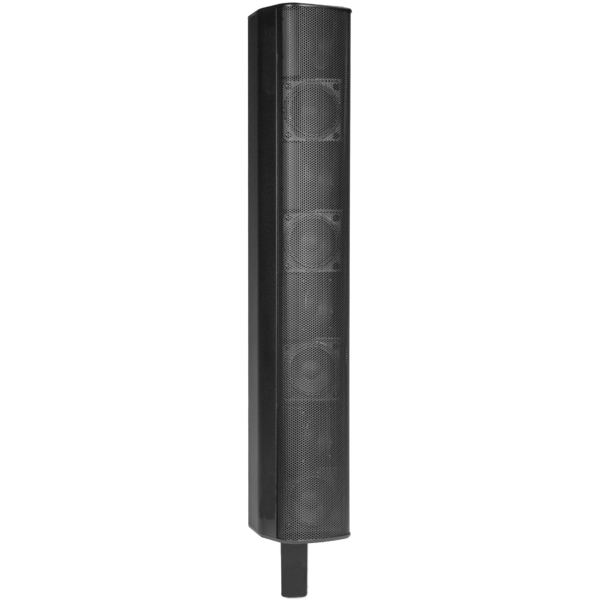

Ark 803AP

Column line array loudspeaker module, 200W AES, 120dB SPL

Main features:

  • Mid frequency: 8x3'' midrange / 0.75'' v.c.
  • Frequency response: 135-17000 Hz (±3dB)
  • Coverage angle HxV:115x20°
  • The modules with 8 transducers of 3” can be configured in vertical array too and represent the solution to sound in deep environments particularly difficult, where quality and intelligibility are required. Column modules with an off-axis transducer for wide horizontal dispersion.
  • Aluminium frame for a very robust yet lightweight design that fits in with any environment

PHOTO GALLERY

Technical specifications

LOUDSPEAKER
  • System type: column loudspeaker
COMPONENTS
  • Mid frequency: 8x3'' midrange / 0.75'' v.c.
FEATURES
  • AES/program power: 200/400W
  • SPL max: 120dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • Sensitivity: 95dB @1W/1m (free field)
  • Impedance: 16 Ohm
  • SPL cont/peak: 114/120dB @1m (free field)
  • Frequency response: 135-17000Hz (±3dB)
  • Coverage angle HxV: 115x20°
  • Suggest LPF range: 140/180Hz
  • Recommended amplifier up to: 400W /16Ohm
INPUT/OUTPUT CONNECTORS
  • Input signal: Jack 6.35 mm IN/OUT
CABINET CONSTRUCTION
  • Cabinet material: 3mm / 0.12'' aluminum die cast
  • Sospension system: support with signal connection
PHYSICAL
  • Dimensions (WxHxD): 110x770x148mm / 4.33''x30.31''x5.83''
  • Weight: 7.6kg / 16.76lbs

Versions

Code
Finishing
ARK803APBK
ARK803APBK
Black
ARK803APWH
ARK803APWH
White

Accessories & Related Products

ARKBASE
ARKBASE
(Optional)
ARK680SE
ARK680SE
(Optional)
BAGARK803AP
BAGARK803AP
(Optional)
Reinforced nylon bag for the protection/transport of a pair of ARK803

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetArk803ap_A4_DATASHEET.pdf978KB

User manual

File name File size Download
User manualArk803ap_USER_MANUAL.pdf5MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download
SoftwareFile preset ARK column - IDEA18KB

Firmware
