ARK803MP
DAD

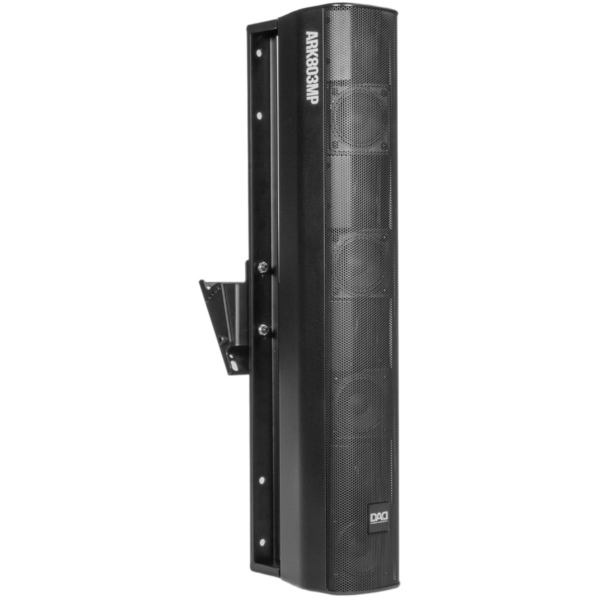

Ark 803MP

Wall mounted column loudspeaker, 200W AES, 120dB SPL

Wall mounted column loudspeaker, 200W AES, 120dB SPL

Main features:

  • Mid frequency: 8x3'' midrange / 0.75'' v.c.
  • Frequency response: 135-17000 Hz (±3dB)
  • Coverage angle HxV:115x20°
  • The modules with 8 transducers of 3” represent the solution to sound in deep environments particularly difficult, where quality and intelligibility are required.
  • Column modules with an off-axis transducer for wide horizontal dispersion.
  • Aluminium frame for a very robust yet lightweight design that fits in with any environment.

PHOTO GALLERY

Technical specifications

LOUDSPEAKER
  • System type: column loudspeaker
COMPONENTS
  • Mid frequency: 8x3'' midrange / 0.75'' v.c.
FEATURES
  • AES/program power: 200/400W
  • SPL max: 120dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • Sensitivity: 95dB @1W/1m (free field)
  • Impedance: 16 Ohm
  • SPL cont/peak: 114/120dB @1m (free field)
  • Frequency response: 135-17000Hz (±3dB)
  • Coverage angle HxV: 115x20°
  • Suggest HPF range: 140/180Hz
  • Recommended amplifier up to: 400W /16Ohm
INPUT/OUTPUT CONNECTORS
  • Input signal: 4pole IN/OUT
CABINET CONSTRUCTION
  • Cabinet material: 3mm / 0.12'' aluminum die cast
  • Sospension system: wall brackets (included)
PHYSICAL
  • Dimensions (WxHxD): 110x690x148mm / 4.33''x27.17''x5.83''
  • Weight: 7.5kg / 16.53lbs

Versions

Code
Finishing
ARK803MPBK
ARK803MPBK
Black
ARK803MPWH
ARK803MPWH
White
