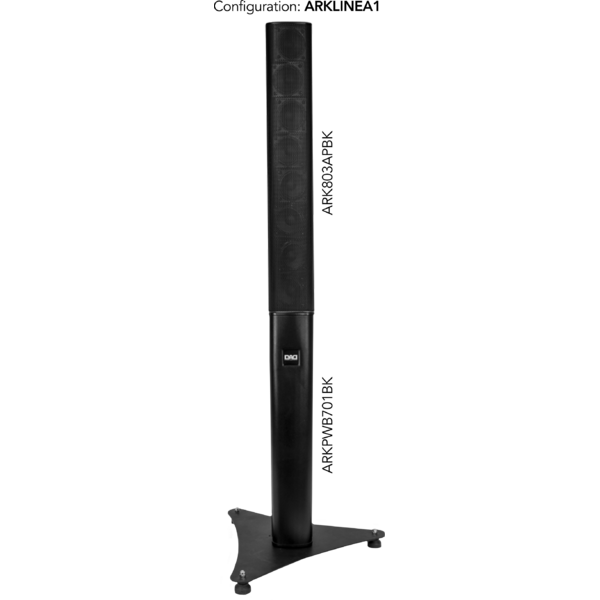

Ark PWB701

700W amplified base for ARK803AP column loudspeakers

700W amplified base for ARK803AP column loudspeakers

Main features:

  • DSP with 4 presets (1 unit, 2 units,120 Hz HPF, 180 Hz HPF) for selection of optimal frequency response
See variants

PHOTO GALLERY

Ark PWB701
Ark PWB701
Ark PWB701
Ark PWB701
Ark PWB701
Ark PWB701
Ark PWB701
Ark PWB701

Technical specifications

AMPLIFIER
  • Channels: 1
  • Circuit class: digital
OUTPUT
  • Single channel power: 700 8 Ohm
AUDIO SPECIFICATIONS
  • Frequency responce: 20 - 20000Hz @ 8 Ohm (±0.5 dB)
  • THD+N: <0.005%
  • Slew rate: >30V/μs @ 8Ω
  • Damping factor: >1000
  • Input impedance: 10kΩ
  • Signal/Noise rate: >100dB
POWER SUPPLY STAGE
  • Operating voltage/frequency: 220 V ±10%, 50Hz
  • Type: Switching
PROTECTIONS
  • Output: Soft-start, short circuit, DC, overheat
  • Input: Clip/limit, progressive volume
FUNCTIONS
  • Input sensitivity: 4 dBu (1,228Vrms) adjustable
  • User controls: 1 unit, 2 units, 120Hz HPF, 180Hz HPF
INDICATORS
  • Indicators: setting LED, signal level, temperature and protection
INPUT/OUTPUT CONNECTORS
  • Input signal: XLR in/out
  • Output signal: jack 6.35 mm
  • Power connection: PowerCON IN/OUT
PHYSICAL
  • Dimensions (WxHxD): 500x650x500mm / 19.69''x25.59''x19.69''
  • Weight: 8.8kg / 19.4lbs

Versions

Code
ARKPWB701BK
ARKPWB701BK
ARKPWB701WH
ARKPWB701WH

Accessories & Related Products

ARK680SE
ARK680SE
(Optional)
