ATMOSFERA1803
PROLIGHTS
discontinued

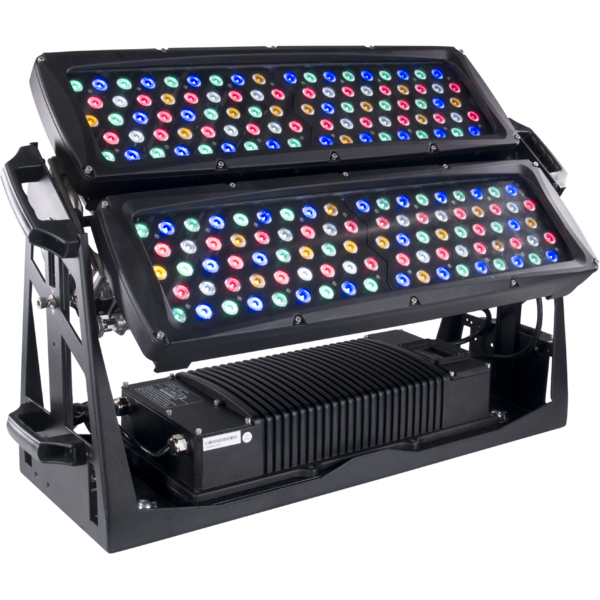

ATMOSFERA1803

ORDER CODE: ATMOSFERA1803

Main features:

    ATMOSFERA1803 is an outdoor projector excelling in the class of architectural LED luminaires for the outstanding power of its 180 3W RGBW LEDs. Its amazing light output is comparable to 2500W lamp-based architectural projectors, having power consumption reduced to only 680W. ATMOSFERA1803 is absolutely silent, due to cooling by natural convection and absence of fans, allowing IP66 protection rate for large outdoor lighting projects as large events, building facades or architectural integration.

    Light source and optics
    • 180 x 3W Seoul RGBW LEDs (1'000mA green, blue, white, 700mA red)
    • Lumen: 18000
    • Lux@5m: 5660@5m
    • Energy-saving LEDs employed, with more vivid colours and lower power consumption than traditional lamps
    • Colour synthesis: RGBW colour mixing for a limitless colour range with full control over saturation and temperature allowed by amber and white LEDs
    • White temperature presets: 3200K~10000K
    • Installed optics: 30°
    • Beam angle: 25°
    • Field angle: 50°
    • LEDs average life span: >50'000 h

    Electronics and features
    • Several DMX selectable configurations (3, 4, 5, 6, 7, 10, 17 channels) for advanced or basic controlling
    3 channels: RGB
    3 channels: HSV
    4 channels: RGB, dimmer
    5 channels: RGBW
    6 channels: dimmer, RGBW
    7 channels: dimmer, RGBW, strobe
    10 channels: BLOCK1 (RGBW), BLOCK2 (RGBW) for independent control of each panel
    17 channels: dimmer, BLOCK1 (RGBW), BLOCK2 (RGBW), macro, strobe, auto, dimmer speed, ID address
    • LED display user interface for auto programs execution, static colour mode, creation of custom shows, colour calibration presets
    • 5 different dimming available curves.
    • Master/Slave mode for stand-alone operations
    • Linear and “step-less” transition between DMX values
    • Flicker-free operations
    • Silent operations, due to natural cooling of the peculiar chassis and to absence of fans

    Structure and Power supply

    • Sturdy die-cast aluminium body conceived for long-time durability and demanding applications
    • Frontal tempered glass panel
    • Internal Protection: IP66
    • Pressure and temperature balance through GORE membrane vents
    • Mechanical system for individual positioning of LED panels
    • Individual panel excursion: -10°-/+90°
    • Simultaneous panel excursion: -96°/+96°
    • Power (shuko) and data (xlr-3p) adapter cables included
    • Ergonomic handles for carrying and positioning
    • Storage and carrying flight case included
    • Suspension and fixing: any possible working position through omega kit (included) with “quick lock” system
    • Power unit: 100-240V 50/60Hz
    • Working condition: -40/+50°
    • Max power consumption: 680 W
    • Weight: 40,3 kg
    • Dimensions (WxHxD): 808x516x252 mm
