ATMOSFERA903
PROLIGHTS
discontinued

ATMOSFERA903

ORDER CODE: ATMOSFERA903

Main features:

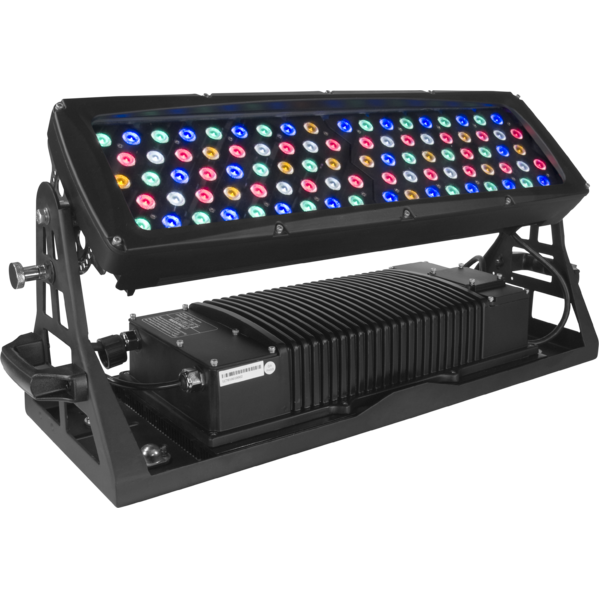

    ATMOSFERA903 is an outdoor projector excelling in the class of architectural LED luminaires for the outstanding power of its 90 3W RGBWA LEDs. Its amazing light output is comparable to 1200W lamp-based architectural projectors, having power consumption reduced to only 300W. ATMOSFERA903 is absolutely silent, due to cooling by natural convection and absence of fans, allowing IP66 protection rate for large outdoor lighting projects as large events, building facades or architectural integration.

    Light source and optics
    • 90 x 3W Seoul RGBWA LEDs (1'000mA green, blue, white, 700mA red, amber)
    • Lumen: 9000
    • Lux: 2830@5m
    • LED section: 22 red, 22 green, 22 blue, 12 white, 12 amber
    • Energy-saving LEDs employed, with more vivid colours and lower power consumption than traditional lamps
    • Colour synthesis: RGBWA colour mixing (>16 million colours) for a limitless colour range with full control over saturation and temperature allowed by amber and white LEDs
    • White temperature presets: 3200K~10000K
    • Installed optics: 30°
    • Beam angle: 25°
    • Field angle: 50°
    • LEDs average life span: >50'000 h

    Electronics and features
    • Several DMX selectable configurations (3, 4, 5, 6, 7, 11 channels) for advanced or basic controlling
    3 channels: RGB
    3 channels: HSV
    4 channels: RGB, dimmer
    5 channels: RGBWA
    6 channels: dimmer, RGBWA
    7 channels: dimmer, RGBWA, strobe
    11 channels: dimmer, RGBWA, macro, strobo, auto, auto speed, dimmer speed
    • LED display user interface for auto programs execution, static colour mode, creation of custom shows, colour calibration presets
    • 5 different dimming available curves
    • Master/Slave mode for stand-alone operations
    • Linear and “step-less” transition between DMX values
    • Flicker-free operations (400Hz)
    • Silent operations, due to natural cooling of the peculiar chassis and to absence of fans

    Structure and Power supply

    • Sturdy die-cast aluminium body conceived for long-time durability and demanding applications
    • Frontal tempered glass panel
    • Internal Protection: IP66
    • Pressure and temperature balance through GORE membrane vents
    • Mechanical system for individual positioning of LED panels
    • Individual panel excursion: -10°-/+90°
    • Simultaneous panel excursion: -96°/+96°
    • Power (shuko) and data (xlr-3p) adapter cables included
    • Ergonomic handles for carrying and positioning
    • Storage and carrying flight case included
    • Suspension and fixing: any possible working position through omega kit (included) with “quick lock” system
    • Power unit: 100-240V 50/60Hz
    • Working condition: -40/+50°
    • Max power consumption: 300 W
    • Weight: 24 kg
    • Dimensions (WxHxD): 784x252x310 mm

PHOTO GALLERY

Technical specifications

Versions

Accessories & Related Products

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualAtmosfera903_USER_MANUAL_ITEN.pdf4MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware
