C6016
PROTRUSS

C6016

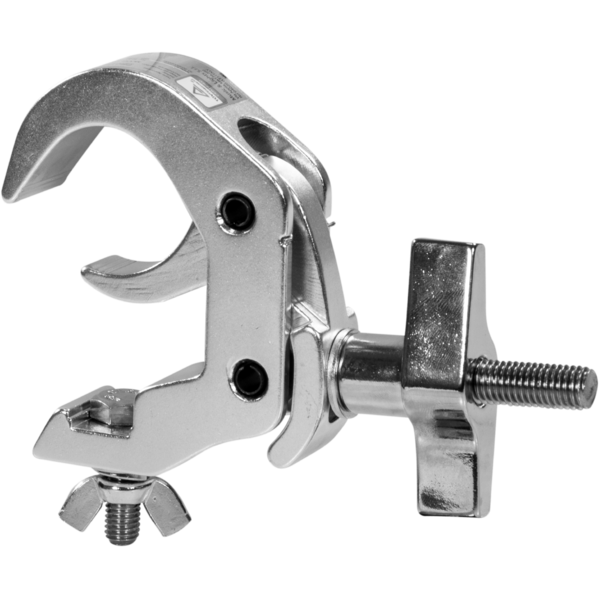

Aluminium truss clamp designed to allow one person to hang heavy luminaires, through the automatic closing with the weight of the object being hung

Main features:

  • SWL (safe working load): 250 kg
  • Bolt size: M10 x 35 mm
  • Fits 48 - 51 mm diameter tubes
  • High tensile aluminium
See variants

PHOTO GALLERY

C6016
C6016

Technical specifications

Versions

Code
Finishing
C6016A
C6016A
Aluminium
C6016B
C6016B
Black

Accessories & Related Products

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualC6016_Clamps_series_EN.pdf5MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DC6016_CAD_2D.dwg383KB
3DC6016_CAD_3D.dwg2MB
Technical drawingC6016_TECHNICAL_DRAWING.pdf115KB
VectorWorksPROTRUSS_ACC_VECTORWORKS_v23_LIBRARY.vwx30MB
VectorWorksPROTRUSS_ACC_VECTORWORKS_v18_LIBRARY.vwx41MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware
