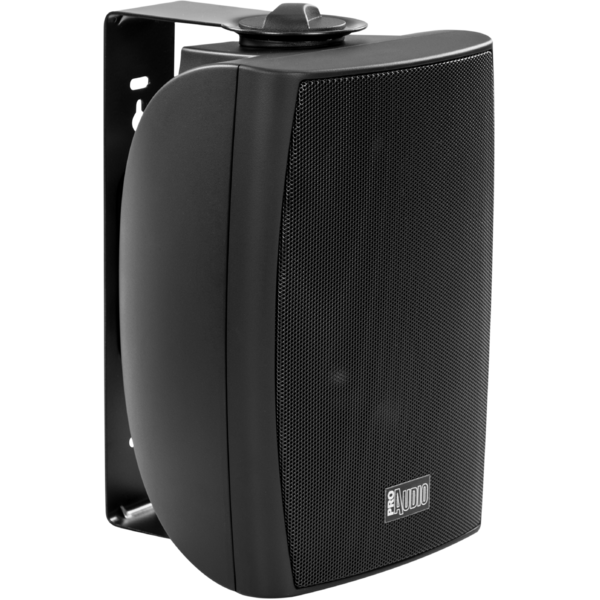

COMPACT44T
PROAUDIO

COMPACT44T

ORDER CODE: COMPACT44T

Compact series of speakers have been designed for audio installations requiring clear reproduction of music and speech, featuring compact and sturdy cases, elegant design and easy installation. Two-way speakers with constant directivity, compact series are suitable for constant-voltage (70/100 V) or constant-impedance (8 Ohm) systems. Woofers are made of polypropylene, high-excursion. Tweeters, equipped with Mylar domes diaphragm, are mounted on constant-directivity horns, providing natural and smooth sound reproduction. Available in white or black colour, compact speakers allow easy and quick installation by using the included adjustable mounting brackets.

Main features:

  • Built-in, multi-tap constant voltage transformer.
  • Switch to select constant-voltage (70/100 V) or constant-impedance (8 Ohm) modes.
  • Built-in low-inductance passive crossover.
  • Semispherical body made of high-density polyurethane, scratch-proof, lightweight and UV resistant.
  • Protective perforated steel grille.
  • Connections by terminals with screw fixing.
  • Available colours: black, white.
  • Adjustable wall bracket included.

PHOTO GALLERY

Technical specifications

LOUDSPEAKER
  • System type: passive 2 way
COMPONENTS
  • Low frequency: 4''
  • High frequency: 1.5''
FEATURES
  • AES/program power: 20/40W
  • Input 100 V: 5-10-20W
  • Input 70 V: 2.5-5-10W
ACOUSTICAL SPECIFICATIONS
  • Sensitivity: 87dB @1W/1m (free field)
  • Impedance: Low impedence 8 Ohm
  • Constant voltage: 70/100 V
  • Frequency response: 80÷18.000Hz (±3dB)
INPUT/OUTPUT CONNECTORS
  • Input signal: screw terminal
PHYSICAL
  • Dimensions (WxHxD): 145x250x165mm / 5.71''x9.84''x6.5''
  • Weight: 1.45kg / 3.2lbs

Versions

Accessories & Related Products

AS282
AS282
(Optional)
Wall Support with adjustable swivel ball, for COMPACT series ABS speakers

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualCompact44t_USER_MANUAL_ITEN.pdf141KB
