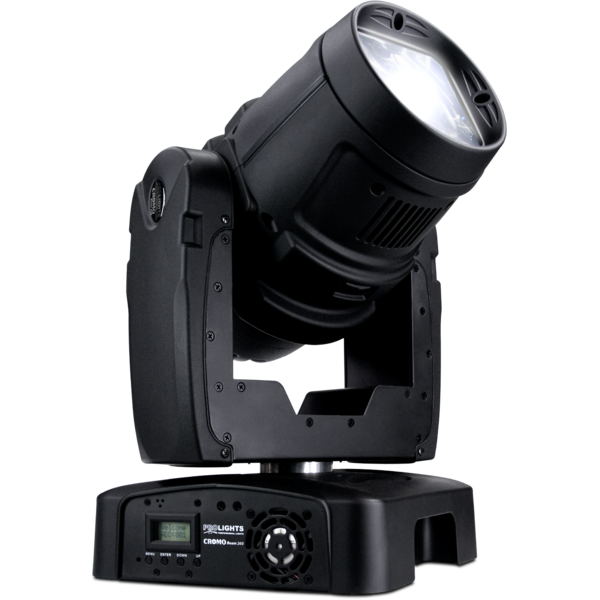

CROMOBEAM260

ORDER CODE: CROMOBEAM260

Main features:

---

CROMOBEAM260 is the first BEAM moving head based on LED light source, housing a high-power 60W diode. The optical unit is composed by a special smooth-surface lens, featuring a 6° highly concentrated parallel beam. Its light output can be compared to a MSR575 luminaire with Iris effect enabled. The amazing rapid movements and the absence of noise make CROMOBEAM260 the perfect device to generate effect in the air, replacing the traditional long-throw projectors and the ACL par sets in medium sized light-shows.

Light source and optics

• 1 x 60W high-power white Luminus LED
• Projection angle: 6°
• High efficiency optical system with a smooth-surface lens to generate a parallel BEAM effect
• LED average life span: >50'000 h

Dimmer/Shutter/Strobo

• 0-100% linear dimmer
• Independent shutter and fading effects with adjustable speed
• Strobe: mechanical, 1-20 flash per second

Colour system

• Colour wheel with 8 dichroic filters + open (linear-stepless selection)
• Rainbow effect with speed adjustment
• Easy calibration and maintenance by magnetic repositioning

Effects

• Rotating gobo wheel: 7 interchangeable gobos (1 of which dichroic)
• Gobos rotation in both CW and CCW direction
• “Gobo-shake” effect and continuous rotation
• 3 facet prism effect, rotating, indexable, replaceable
• Easy access to gobo wheel for replacement
• Easy show: built-in programs with automatic/sound activated mode enabled by LCD control panel
• Edit mode: creation and memorization of custom shows (up to 255 steps) directly from LCD user interface

Electronics

• User Interface: graphic LCD display to control unit DMX addressing, general settings
• 2 DMX available configurations: 9 channels (8 bit) and 12 channels (16 bit) for advanced or basic control mode
• Input and output signal through XLR 3p connector
• Unit reset: through control panel or via DMX
• Electronic self-test and check-up for diagnostics
• Cooling: forced air, protection against overheating

Structure and moving body

• High resistance and flame retardant polymer case in black colour
• Motion Angle: Pan = 540° Tilt = 270°
• Pan/Tilt resolution: 8-bit or 16-bit:
• Pan = 2,10° Pan Fine = 0,008° Tilt = 1,05° Tilt Fine = 0,004°
• Suspension and fixing: any possible working position through omega kit (included)

Power supply

• Power unit: 100-240V 50/60Hz
• Max power consumption: 150W

Weight and dimensions

• Weight: 12,6 kg
• Dimensions (WxHxD): 330x550x290 mm
