CROMOWASH600
PROLIGHTS
discontinued

Cromo Wash600

ORDER CODE: CROMOWASH600

Main features:

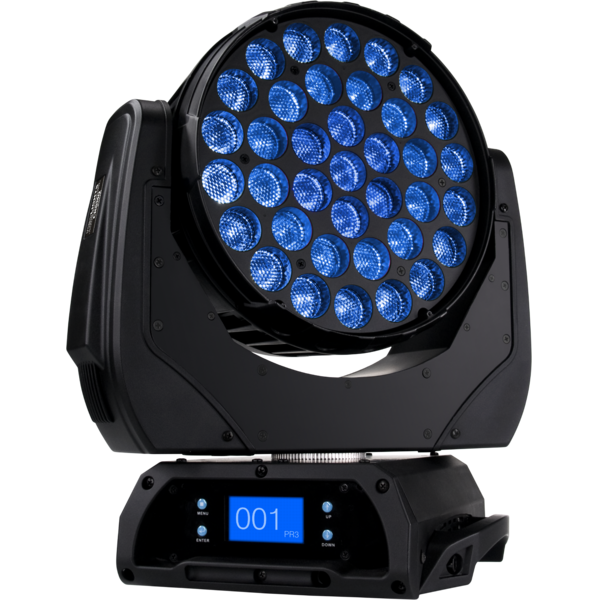

    CROMOWASH600 is a moving ledwasher featuring 37x10W RGBW FullColor LEDs with a slim housing and a multi-purpose technical profile. Wash, Beam or eye-candy, the CROMOWASH600 has been designed to renew every-lighting show with an advanced creativity, introducing a new generation of cues, patterns and aerial effects. The new LED technology uses several LED chips on a single module that creates just perfect point source of extremely smooth new dimensional colour mixing of RGBW. The virtual colour wheel grants a quick access to the built-in library of calibrated colours, for an excellent reproduction of saturated and pastel tones including the white variants. The fast-zoom optic design combined with a dual top-heat system feature a perfect fusion between the 4 primary  colours and  allows a 15-45° linear zoom for both “long through” beam performance and “flood” projection.
    Its noise-free operation makes CROMOWASH600 an ideal tool where the silence is a top-priority like theaters and TV studios, keeping very quick movements and fast rushing over music beats.

    Light source and optics
    • 37 x 10W high-efficiency CREE RGBW FullColor LEDs
    • Lumens: > 6860 lm
    • Lux @5m: 2'285
    • Colour synthesis: RGBW FullColor mixing (>16 million colours) for a limitless colour range and variable CTC control
    • White temperature presets: 3200K~10000K
    • Beam angle: 15°-45° Zoom
    • Electronic linear zoom with motorized and scrolling lens panel
    • LEDs average life span: >50'000 h

    Dimmer/Shutter/Strobe
    • 0-100% linear dimmer
    • 4 different dimming curves available
    • Independent shutter and fading effects with adjustable speed
    • Strobe: Electronic, 1-20 flash per second

    Electronics
    • 3,5'' LCD display for a simplified access to control menu, configuration and DMX addressing
    • Master/Slave mode for stand-alone operations
    • Edit mode: creation and memorization of custom shows (up to 255 steps) directly from LCD user interface
    • Linear and “stepless” transition between DMX values
    • Flicker-free operations (400Hz)
    • 4 DMX available configurations: 8, 10, 16, 21 channels for a basic or advanced control mode
    • 2,4GHz Wireless DMX antenna receiver by Wireless solution Sweden (optional)
    • Unit reset: through control panel or via DMX
    • Cooling: forced air, protection against overheating


    Structure and moving body
    • High resistance and flame retardant polymer case in black colour
    • Internal protection: IP33
    • Power cable (shuko 1,5mt) included
    • Motion Angle: Pan = 540° Tilt = 300°
    • Pan/Tilt resolution: 8-bit or 16-bit:
    • Pan = 2,10° Pan Fine = 0,008° Tilt = 1,05° Tilt Fine = 0,004°
    • Suspension and fixing: any possible working position through omega kit (included)

    Power supply
    • Power unit: 100-240V 50/60Hz
    • Max power consumption: 465W

    Weight and dimensions
    • Weight: 11,6 kg
    • Dimensions (WxHxD): 400x394x270 mm

PHOTO GALLERY

Technical specifications

Versions

Accessories & Related Products

FCL600W
FCL600W
(Optional)
Flight-case for 2pcs of Cromowash600, dimensions: 660x680x480mm

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualCromowash600_USER_MANUAL_ITEN.pdf14MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DCromowash600_CAD_2D.dwg2MB
Technical drawingCromowash600_TECHNICAL_DRAWING.pdf398KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware
