CS520TO
PROAUDIO

CS520TO

ORDER CODE: CS520TO

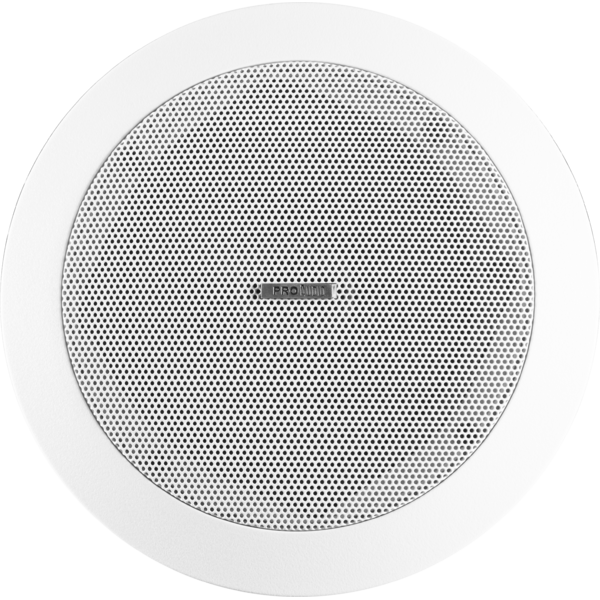

Ceiling speaker for recessed mounting. Ideal for vocal announcements and reproduction of background music.

Main features:

  • Ceiling speaker with coaxial tweeter placed on a bridge support.
  • Built-in line transformer with multiple output connections for 100 V constant voltage lines.
  • White ABS body and metal protection grid.
  • Quick and easy installation by a special holding system, with no need of screws or other fixing elements.

PHOTO GALLERY

Technical specifications

LOUDSPEAKER
  • System type: ceiling speaker
COMPONENTS
  • Low frequency: 5''
  • High frequency: 1''
FEATURES
  • AES/program power: 20/40W
  • Input 100 V: 5/10/20W
ACOUSTICAL SPECIFICATIONS
  • Sensitivity: 91dB @1W/1m (free field)
  • Impedance: 8 Ohm
  • Constant voltage: 100 V
  • Frequency response: 100÷20.000Hz (±3dB)
INPUT/OUTPUT CONNECTORS
  • Input signal: terminal with wire
CABINET CONSTRUCTION
  • Cabinet material: ABS, Iron
PHYSICAL
  • Weight: 1.20kg / 2.65lbs
  • Diameter Ø: 203mm / 7.99''
  • Flush-mounting hole Ø: 170mm / 6.69''
  • Color: White - 9010RAL
