DELTAX48T
PROLIGHTS

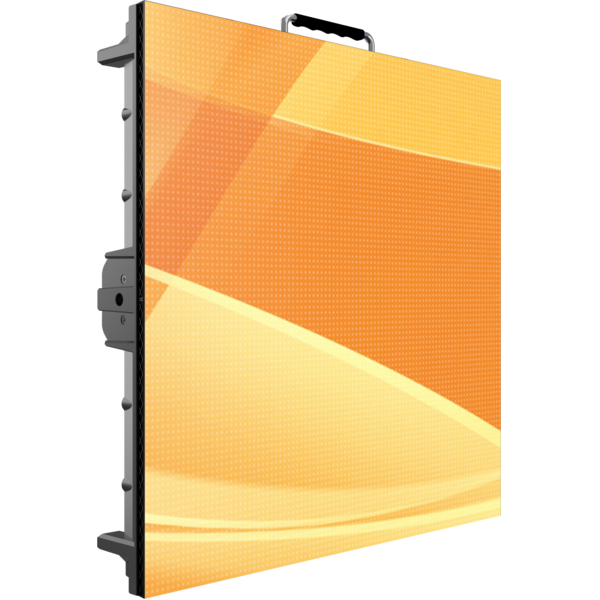

DeltaPix 48T

ORDER CODE: DELTAX48T

Outdoor rental 4,8 mm LED screen with power backup and floor application

DeltaPix 48T is a rental LED screen for outdoor use with a 4,8 mm pixel pitch, designed to meet requirements for demanding touring and other semi-permanent outdoor applications. The DeltaPix 48T panels can be curved up to 10° concave, and support automatic power backup in case of any PSU failures. The DeltaPix 48T can also befloor mounted, by placing panels on their dedicated floor base and applying a selection of black or transparent floor cover. The on-board electronics include the latest generation of Novastar A5s receiver card and refresh rate up to 3.840 Hz.

Main features:

  • Floor function and curvable up to 10° concave
  • Automatic power backup
  • Refresh rate of 3.840 Hz

PHOTO GALLERY

Technical specifications

VIDEO
  • Driver chip type: ICN 2153
  • LED source: Nationstar SMD1921 black frame and white face
  • Pixel pitch: 4.8mm / 0.19''
  • Panel resolution: 104x104pixels
  • Module resolution: 52x52pixels
  • Luminous flux: 3.500nit
  • Contrast: 3.000:1
  • Grayscale: 14 bit
  • Refresh rate ≥: 3.840Hz
  • Drive Mode: 1/13 scan, constant current
  • Vertical viewing angle: 140°
  • Horizontal viewing angle: 120°
  • LED density: 43.276LED/sqm
  • Dead Pixel Ratio: <0,002
  • LED avg life span: 100.000
ELECTRICAL
  • Power input/output: IPKON Seetronic IN/OUT
  • Power supply: AC 110/230 V 50/60 Hz
  • Max power consumption (panel): 200W
  • Avg power consumption (panel): 67W
  • Max power consumption (sqm): 800W
  • Avg power consumption (sqm): 268W
  • Standby power consumption (pannello): 16W
  • Max rated current/panel:: AC 220 V / 0.55 A
  • Working temperature: -20°C / +50°C
  • Working humidity: 10~90 RH%
CONTROL
  • Receiving card type: A5S PLUS
  • Other controllers type: power backup connectors, mapping, firmware copy, RCFGX restore
  • Control protocol: Novastar
  • Signal input: RJ45
  • Signal output: RJ45
MECHANICS
  • Other specifics: curve configurations
  • Module size (WxH): 250x250mm / 9.84''x9.84''
  • Panel size(WxHxD): 500×500×74mm / 19.69''
  • Vertical hanging system: built-in aliscaf clamp support
  • Connection: seamless locking system
  • Panel weight: 7kg / 15.43lbs
  • Weight per square meter: 28kg / 61.73lbs
  • Hanging Panel Quantity ≤: 20 for hanging - ≤ 30 for grounding
BODY
  • Body: die-cast aluminium housing
  • Curve configurations: concave 0° / +10°
  • Body colour: black
PHYSICAL
  • IP rating: IP65 (front) - IP54 (back) for temporary outdoor application, not for fixed installations
  • Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE

Versions

Accessories & Related Products

DXFCM8048
DXFCM8048
(Optional)
Flightcase 8in1 for DELTAX48T
DXHB01
DXHB01
(Optional)
Fly bar for DELTAX29B and DELTAX48T systems, 1 column
DXHB02
DXHB02
(Optional)
Fly bar for DELTAX29B and DELTAX48T systems, 2 column
DXGB01
DXGB01
(Optional)
Ground bar for DELTAX29B and DELTAX48T systems, 1 column
DXGB02
DXGB02
(Optional)
Ground bar for DELTAX29B and DELTAX48T systems, 2 columns
DXBS21
DXBS21
(Optional)
2in1 back support for DELTAX and GAMMAX series LED wall for ground system fixing
DXBS31
DXBS31
(Optional)
3in1 back support for DELTAX and GAMMAX series LED wall for ground system fixing
DXBS41
DXBS41
(Optional)
4in1 back support for DELTAX and GAMMAX series LED wall for ground system fixing
DXBSC
DXBSC
(Optional)
Back plate for DELTAX and GAMMAX series LED wall for ground system fixing
DXCJ03CV
DXCJ03CV
(Optional)
Cabinet curve plate for DELTAX series LED wall, 3° concave
DXCJ05CV
DXCJ05CV
(Optional)
Cabinet curve plate for DELTAX series LED wall, 5° concave
DXCJ10CV
DXCJ10CV
(Optional)
Cabinet curve plate for DELTAX series LED wall, 10° concave
DXXJ
DXXJ
(Optional)
Metal joint to connect 4 x DELTAX/GAMMAX series cabinets, M10 hole for clamp
DXFS01
DXFS01
(Optional)
Floor support for DELTAX series LED wall for floor system fixing, 1 cabinet
DXFS04
DXFS04
(Optional)
Floor support for DELTAX series LED wall for floor system fixing, 4 cabinet
DXFSCB
DXFSCB
(Optional)
Back cushion floor system for DELTAX series LED wall
DXFSAPBK
DXFSAPBK
(Optional)
Acrilyc panel to protect cabinet in floor application, black finishing
DXFSAPWH
DXFSAPWH
(Optional)
Acrilyc panel to protect cabinet in floor application, transparent finishing
OXFCIS100
OXFCIS100
(Optional)
Rigging/ground-stack structure flightcase for all LEDScreen, 100cm
OXFCIS200
OXFCIS200
(Optional)
Rigging/ground-stack structure flightcase for all LEDScreen series, 200cm
OXFCSP
OXFCSP
(Optional)
Spare part flightcase for OMEGAX-DELTAX series LED-display
DXDCL01
DXDCL01
(Optional)
Data cable for DELTAX LED display series assembled with RJ45, L.140 cm
DXDCL10
DXDCL10
(Optional)
Data cable for DELTAX LED display series assembled with RJ45, L.10 m
OXACL01
OXACL01
(Optional)
Power cable for LED display series, Seetronic, L.140 cm
DXACBK
DXACBK
(Optional)
Backup power cable for DELTAX series ledscreen

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetDeltax48t_DELTAPIX_SERIES_BROCHURE.pdf(13/04/2023)9MB
Letter datasheetDeltax48t_A4_DATASHEET_(EN).pdf(20/10/2022)2MB

User manual

File name File size Download
User manualGENERAL_SAFETY_INFORMATION.pdf(02/12/2022)12MB
User manualDeltax48t_Led_screen_connector_compatibi.pdf(14/10/2025)879KB
User manualDeltax48t_Led_Screen_User_Manual_EN.pdf(21/10/2022)3MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DDeltax48t_CAD_2D.dwg(09/08/2022)8MB
Technical drawingDeltax48t_TECHNICAL_DRAWING.pdf(09/08/2022)515KB
VectorWorksPROLIGHTS_VIDEO_VECTORWORKS_23_LIBRARY.vwx(12/07/2023)7MB
VectorWorksPROLIGHTS_VIDEO_VECTORWORKS_18_LIBRARY.vwx(12/07/2023)11MB

Tech docs

File name File size Download

Software

File name File size Download
SoftwareHADZ191913-C - 3840Hz(13/11/2025)10KB
SoftwareAUR2C0595B - 3840Hz(13/11/2025)136KB

Firmware

Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
4.6.6.0 STABLE 20/06/2022 Definitive Stable Version for batch AUR2C0595B (A5S PLUS)...not for batch HADZ191913-C (A5S).
4.6.1.0 STABLE 14/10/2020 Definitive Stable Version for batch HADZ191913-C (A5S).
