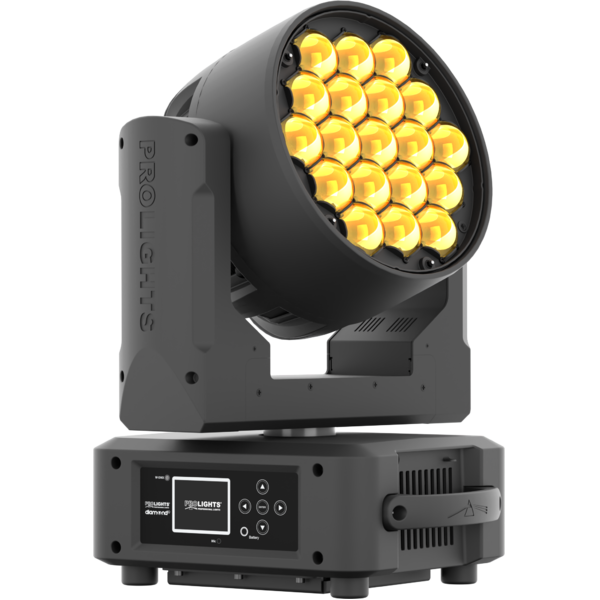

Diamond 19CC

ORDER CODE: DIAMOND19CC

19x15W moving LED wash RGBW FC

DIiamond 19CC is a pure wash light version of the Diamond 19. Retaining the massive 7,5° - 41,4° zoom, even beam and truly fantastic colour range but removing the individual control of each pixel. When the budget won't quite stretch to the fully featured Diamond 19, the show can still look stunning with the Diamond 19CC.

Main features:

  • 19x15 W RGBW FC LEDs
  • 7,5° - 41,4° zoom
  • Dual LED zone control for basic 'eye-candy' effects
  • CT channel with white emulation: 2.800K - 9.000K
  • Liquid cooling system for minimal noise
See variants

PHOTO GALLERY

Diamond 19CC
Diamond 19CC
Diamond 19CC
Diamond 19CC
Diamond 19CC

Technical specifications

LIGHT SOURCE
  • Source: 19x15W RGBW LED
  • Luminous flux: (7,5°) 2'701 lm - (41,4°) 3'875 @full
  • Lux: (7,5°) 5'411 lx - (41,4°) 831lx @5 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom: 7,5° - 41,4° motorised linear zoom
  • Lens type: honeycomb gapless plano-convex optics
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2800 K ~ 9000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • FX generator: 2 sections ring control
BODY
  • Pan angle: 630°
  • Tilt angle: 265°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 14/15/16/26channel
  • Pixel control: ring control
  • Wireless Control: optional, wireless solution receiver
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included
  • Hibernation: power safe mode when lost DMX
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 275W
  • Output (at 230V): 6 units on a single power line
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: Amphenol XLR 3p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 338x449x235mm / 13.31''x17.68''x9.25''
  • Weight: 11kg / 24.25lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

C6016B
C6016B
(facoltativo)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black&White& White
9533FCAL03
9533FCAL03
(facoltativo)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
RSR0630B
RSR0630B
(facoltativo)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
958025L03
958025L03
(facoltativo)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
9513FCAL03
9513FCAL03
(facoltativo)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
TOUR53413L03
TOUR53413L03
(facoltativo)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
TOUR53415L03
TOUR53415L03
(facoltativo)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
OS24D13
OS24D13
(incluso)
Quick-lock omega bracket, M12 hole
FSHLW01
FSHLW01
(facoltativo)
1U Foam shell compatible with DIAMOND19, STARK400
UPBOX2P5
UPBOX2P5
(facoltativo)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT
UPBOXPRO
UPBOXPRO
(facoltativo)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetDiamond19cc_A4_DATASHEET_(EN).pdf443KB
Letter datasheetDiamond19cc_A4_DATASHEET_(IT).pdf439KB

User manual

File name File size Download
User manualDiamond19cc_USER_MANUAL_ITEN.pdf5MB

DMX chart & personalities

File name File size Download
DMX chartDiamond19cc_DMX_CHARTS.pdf127KB
DIAMOND19CC Firmware rev. 2.1.01
manufacturer fixture library (Link) Link
prolights_diamond19cc.d4Download
manufacturer fixture library (Link) Link
prolight_diamond19cc_15ch.hedDownload
prolight_diamond19cc_26ch.hedDownload
manufacturer fixture library (Link) Link
diamond19cc_14ch.fdfDownload
diamond19cc_15ch.fdfDownload
diamond19cc_16ch.fdfDownload
diamond19cc_26ch.fdfDownload
diamond19cc_ssl2.zipDownload
manufacturer fixture library (Link) Link
prolights@diamond_19cc@standard.xmlDownload
prolights@diamond_19cc@bas-8@initial.xmlpDownload
prolights@diamond_19cc@bas-16@initial.xmlpDownload
prolights@diamond_19cc@extended_1@initial.xmlpDownload
manufacturer fixture library (Link) Link
diamond19cc_hog3.zipDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
