DK80T
PROAUDIO

DK80T

ORDER CODE: DK80T

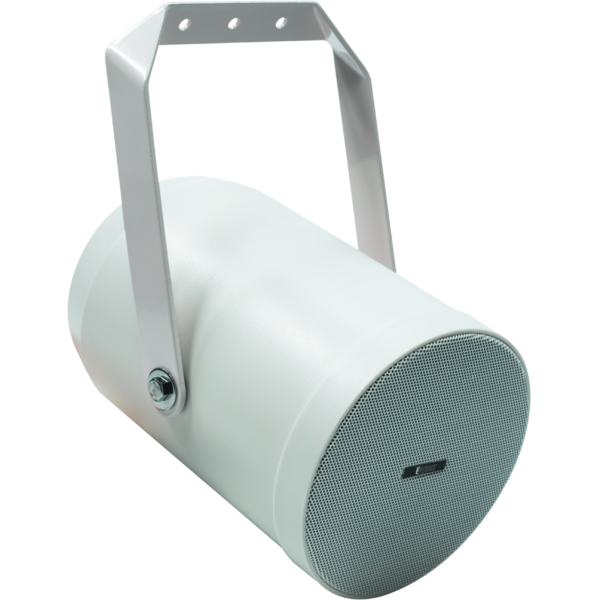

Loudspeaker ideal for high-fidelity audio reproduction designed ceiling and wall fixing.

Main features:

  • 4" woofer with the diaphragm made of polypropylene.
  • Built-in, multi-tap constant voltage transformer.
  • Body made of high-density polyurethane, scratch-proof, lightweight and UV/weather resistant.
  • Protective perforated steel grille.
  • Suitable for indoor and outdoor use.
  • Connections by wire terminals.
  • Adjustable wall bracket included.

PHOTO GALLERY

Technical specifications

LOUDSPEAKER
  • System type: wall speaker
COMPONENTS
  • Full range: 4''
FEATURES
  • AES/program power: 10/20W
  • Input 100 V: 2.5/5/10W
ACOUSTICAL SPECIFICATIONS
  • Sensitivity: 91dB @1W/1m (free field)
  • Constant voltage: 70/100 V
  • Frequency response: 150÷16.000Hz (±3dB)
INPUT/OUTPUT CONNECTORS
  • Input signal: terminal with wire
PHYSICAL
  • IP rating: IP55 for temporary outdoor application, not for fixed installations
  • Weight: 1.56kg / 3.44lbs
  • Diameter Ø: 138 x (205 deep)mm / 5.43''x0''

Versions

Accessories & Related Products

    DOWNLOAD

    Data sheet & specs

    File name File size Download

    User manual

    File name File size Download
    User manualDk80t_USER_MANUAL_ITEN.pdf339KB
