DP1000
DAD
discontinued

DP1000

ORDER CODE: DP1000

DClass Power Amplifier 2ch., 2x350W/8, 2x550/4, Bridge: 1x1100/8, 2U/19''

The innovative DAD's D-class DP amplifiers series uses an advanced design that drastically reduces the weight and dissipation of heat. Efficiency between energy consumption and output available the power is 95%. The amplifiers of DP series are designed with a new high audio resolution D-class typology.
These revolutionary amplifier series provide a superior quality sound and an unequalled reliability. Protection circuits allow greater efficiency under difficult loads and power conditions. In other words, an amplifier that doesn't hurt nor your budget nor your back!

Main features:

  • Reaching a single-channel power output of 350/550 W 8/4 Ohm, employs SMPS technology for the power supply stage and class D for the output stage, weighing only 5.7 kg.
  • These features make DP1000 the right choice for professional loudspeakers and for the Sub / MF / HF sections of multi-amplified systems.
See variants

PHOTO GALLERY

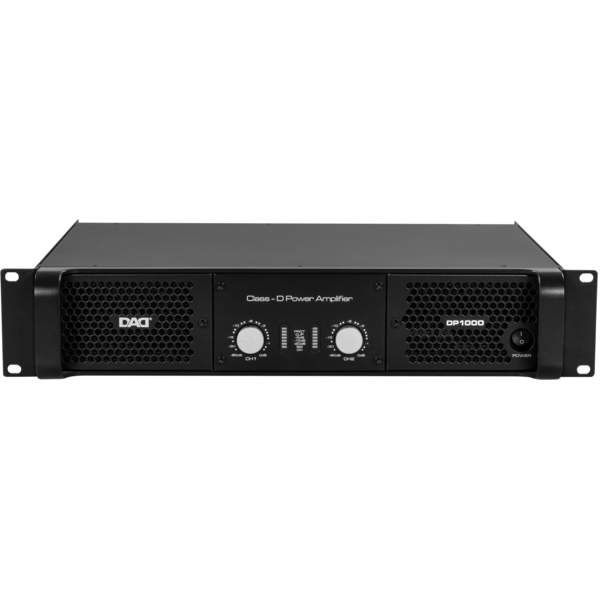

DP1000

Technical specifications

AMPLIFIER
  • Channels: 2
  • Circuit class: digital
OUTPUT
  • Single channel power: 350/550 W 8/4 Ohm (Continuous Power - EIA 1 kHz 1% THD)
  • Bridge mode power: 1100 W 8 Ohm (Continuous Power - EIA 1 kHz 1% THD)
AUDIO SPECIFICATIONS
  • Frequency responce: 20 - 20000Hz @ 8 Ohm (±0.5 dB)
  • THD+N: <0.15%
  • Slew rate: >10V/μs @ 8Ω
  • Damping factor: >60
  • Input impedance: 10kΩ
  • Signal/Noise rate: >96dB
POWER SUPPLY STAGE
  • Type: Switching
  • Operating voltage/frequency: 220 V ±10%, 50Hz
  • Max power consumption: 550 W
PROTECTIONS
  • Output: Soft-start, short circuit, DC, overheat
  • Input: Clip/limit, progressive volume
FUNCTIONS
  • Input mode: stereo, parallel, bridge / limiter
  • Input sensitivity/gain: 1Vrms/32dB/38dB
INDICATORS
  • Indicators: 2 x LED bar - signal level, and over temperature protection
INPUT/OUTPUT CONNECTORS
  • Input signal: XLR in/out
  • Output signal: 4p in/out, binding post
  • Power connection: VDE
PHYSICAL
  • Cooling: active, silent operation
  • Dimensions (WxHxD): 483x89x382mm / 19.02''x3.5''x15.04''
  • Rack unit: 2
  • Weight: 5.7kg / 12.57lbs

Versions

Accessories & Related Products

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualDp1000_USER_MANUAL_ITEN.pdf2MB
