ELFINFC

ORDER CODE: ELFINFC

Main features:

---

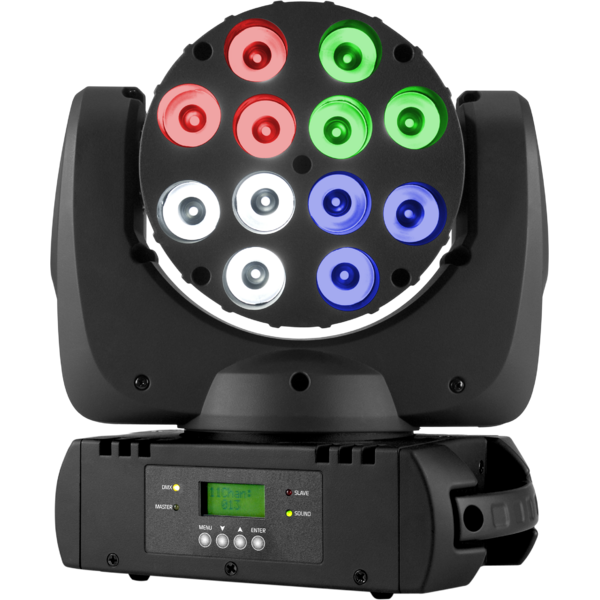

ELFINFC is an innovative moving LED-washer conceived to deliver a new level of visual effect to any show like Wash, Pixel map and beam. The light source features 12x10W CREE RGBW FullColour LED granting a powerful and brilliant chromatic synthesis. The advanced control mode allows to control each quadrant as an indipendent fixture to generate multi-coloured beams or assembling the pixels in a video-LED. The brand new optical design with tubular tracks is conceived to feature a very bright and narrow beam (12°) for striking performance even in long-throw projections. The slim body (only 30cm high) and its weight of 5,8kg make the ELFIN a striking solution for all concept of light-project as Live,showrooms, clubs, theater.

Light source and optics

• 12 x 10W high-efficiency CREE RGBW FullColor LEDs
• Lux @5m: 1'500
• Colour synthesis: RGBW FullColor mixing (>16 million colours) for a limitless colour range and variable CTC control
• White temperature presets: 3200K~10000K
• Beam angle: 20°
• LEDs average life span: >50'000 h

Dimmer/Shutter/Strobe

• 0-100% linear dimmer
• 4 different dimming available curves
• Independent shutter and fading effects with adjustable speed
• Strobe: Electronic, 1-30 flash per second

Electronics

• LCD display for a simplified access to control menu, configuration and DMX addressing
• Master/Slave mode for stand-alone operations
• Edit mode: creation and memorization of custom shows (up to 255 steps) directly from LCD user interface
• Sound mode: sound activation through built-in microphone with sensitivity adjustment
• Linear and “stepless” transition between DMX values
• Flicker-free operations (400Hz)
• 2 DMX available configurations: 12 channels (8 bit) and 28 channels (16 bit) for basic or advanced control modes
• Independent quadrant control for for pixel map effect or multi-coloured beams
• Unit reset: through control panel or via DMX
• Cooling: forced air, protection against overheating


Structure and moving body

• High resistance and flame retardant polymer case in black colour
• Internal protection: IP20
• Power cable (shuko 1,5mt) included
• Motion Angle: Pan = 630° Tilt = 200°
• Pan/Tilt resolution: 8-bit or 16-bit:
• Pan = 2,47° Pan Fine = 0,01° Tilt = 0,78° Tilt Fine = 0,004°
• Suspension and fixing: any possible working position through omega kit (included)

Power supply

• Power unit: 100-240V 50/60Hz
• Max power consumption: 150W

Weight and dimensions

• Weight: 5,8 kg
• Dimensions (WxHxD): 258x285x149 mm
