EMERALD
ORDER CODE: EMERALDMain features:
-
EMERALD is a professional graphic laser projector, designed to create amazing laser shows in large venues.
- Light source: 150mW 532nm green + 500mW 650nm red + 400mW 450nm blue diodes
- RGB color mixing: 7 colors (red, green, blue, yellow, cyan, magenta, white) for a wide chromatic choice
- Laser radiation class: 4B
- Scan Frequency: 25KHz
- ILDA protocol: ILDA DB25 connection on rear panel, for control through computer software for advanced laser-projection programming
- DMX protocol: 2 DMX modes, up to 19 channels, with hundreds of animations and multi-ray effects
- Sound-Sync mode: sound activation through built-in microphone audio input, with adjustable sensitivity
- Visual effects: creation and reproduction of 3D animations, texts, logos, beams and waves
- Automatic mode: built-in automatic shows and audio-synchronized sequences
- User interface: LCD graphic display
- Electronic self-test and check-up for diagnostics
- Safety: compliance with EN60825-1:2007 standards, manual key-switch and input for safety remote-interlock

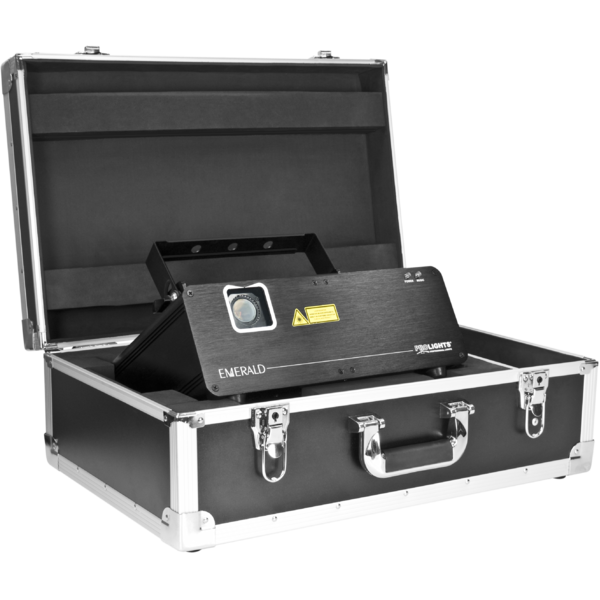

- Flightcase included for safe transportation and storage
- Connections: XLR 3p input/output, DB25 input for connection to ILDA-compatible softwares
- Power supply: AC 230V, 50-60Hz
- Power consumption: 55W
- Weight: 11 kg
- Dimensions (WxHxD): 460x196x358 mm
RGB additive color mixing allows the generation of 7 colors, with a sharp bright output, relying on total 1W power (500mW red, 150mW green, 400mW blue) projecting images, sceneries and visible beams up to long distance.
EMERALD can be controlled through ILDA-compatible softwares, DMX protocol, pre-programmed sound-active shows.
Laser source
Controls
Structure and power supply
