EVO160F
PROLIGHTS

EVO160F

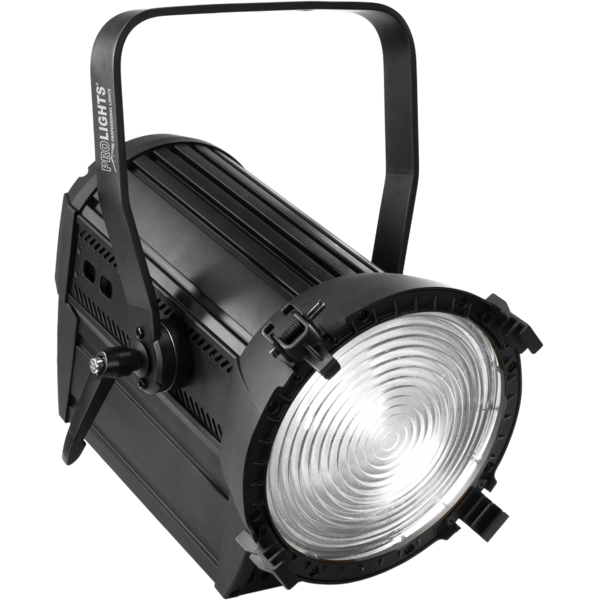

EVO160F is a Fresnel fixture with LED source engineered to exceed conventional projectors in performance and power, creating a real opportunity to replace traditional 1000W halogen projectors. Available in Tungsten (3100K) and Daylight (5600K) versions, EVO160F reproduces the projection uniformity and dimmer linearity of conventional projectors, including electronic linear zoom control through DMX. EVO160F response is exactly that of a conventional projector, results are natural and shadows have same behaviour of single-source spots.

Main features:

  • 16x10 W high power CREE LEDs
  • Available in Tungsten (3100K) and DaYlight (5600K) Colour temperature variants
  • Electronic linear zoom from 13-41°
  • No need for dimmers nor lamp replacement, LED lifespan >50.000h
  • Flicker-free for cameras, TV-studios friendly
  • No UV/IR emissions

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 16x10W high-power white LED
  • CCT: TU 3100 K - DY 5600
  • Luminous flux: TU 5300lm - DY 6519
  • Lux: (13°) TU 4670lux - DY 5730lx @3 m
  • CRI: TU >83Ra - DY >70
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom range: 13°~41° motorised linear zoom
  • Lens type: high-quality glass lens optics
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 1/2/5channel
  • Display: LED display user interface
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 5 selectable dimming modes available
  • Strobe / shutter: 1-25 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 180W
  • Output (at 230V): 10 units on a single power line
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 3p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 286x260x417mm / 11.26''x10.24''x16.42''
  • Weight: 6,6kg / 14.55lbs

Versions

Code
Col. Temperature
EVO160FDY
EVO160FDY (DISCONTINUED)
5600K
EVO160FTU
EVO160FTU (END OF LIFE)
3100K
