EVO190E
PROLIGHTS

EVO190E

Main features:

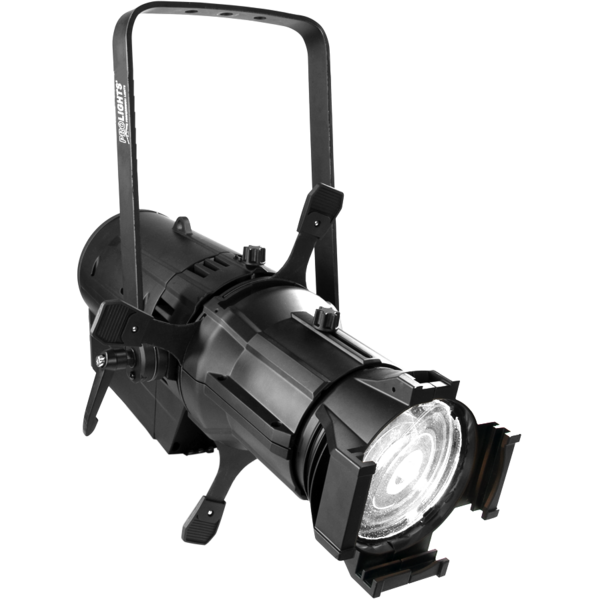

    EVO190E is the first profiler with LED light source capable of replacing traditional profilers equipped with 750W HPL lamp. Available in Tungsten (3100K) and Daylight (5600K) versions, EVO190E is the first projector in its category offering an amazing light output and an excellent framing property with a low-consumption LED source. Light source is generated by an array of 19x10W LEDs, guaranteeing a highly uniform projection (with no pixels or dots) calibrated at same colour temperature. Design of EVO190E makes it fit properly in studio applications, theaters, events, architectural and in environments having limited power supplies.

    Advantages of EVO190E technology:

    • Considerable energy saving during operation
    • Simplified wiring: up to 8 profilers in a daisy-chain for both power and signal connection
    • No need for dimmers nor lamp replacement, LED lifespan >50.000h
    • No maintenance operations, ideal when placed out of reach
    • Suitable for long-lasting operations
    • Cost-effective lower need for typical air-conditioned studio requirements
    • Working with industry-standard accessories
    • Virtually indestructible accessories and parts
    • Also fitting plastic gobos, besides standard glass and metal gobos
    • Constant colour temperature over the whole dimming scale
    • Flicker-free for cameras, TV-studios friendly
    • No UV/IR emissions
    • No harm installation in proximity of audience (TV, theaters) or light sensitive objects (museums)
    • User-friendly LED display interface for dimming curve calibration, DMX setup and self-test

    Light source and optics
    • 19x10W (3A) LEDs-array
    • Lumen: Tungsten 5736 lm, Daylight 7457 lm
    • Lux: Tungsten 12786 @ 2m, Daylight 16622 @ 2m
    • Peak intensity: Tungsten 51142cd, Daylight 66485cd
    • Color rendering: Tungsten >83Ra, Daylight >70Ra
    • Color Temperature: Tungsten 3100K, Daylight 5600K
    • Available optics (not included): 19°,26°, 36°, 50°, Zoom 15°/30°, Zoom 25°/50°
    • High-efficiency optics maximizing uniformity of projection, framing precision, color temperature stability over the entire dimming curve
    • Average life LED life: >50,000 hours

    Electronics and features
    • Several DMX configurations (1, 2, 3 channels)
    1 channel: dimmer
    2 channels: dimmer, dimmer fine
    3 channels: dimmer, dimmer fine, strobe
    • 4-char LED display for control
    • Dimmer curve setting: 5 selectable configurations
    • Flicker-free frequency (>400 Hz) diodes suitable for camera recording
    • Quiet operations, forced-air cooling with no-noise fans

    Structure and Power supply
    • High-resistance aluminum body designed to facilitate heat dissipation
    • Designed for compatibility with industry-standard accessories as blades, gobo/effects holders, tube-lens of other ERS projectors
    • Internal Protection: IP20
    • Input/Output Power connections: In/Out Neutrik NAC3MPA/NAC3MPB
    • Input/Output Signal connections: In/Out 3p/5p XLR
    • Suspension bracket, rear handles and clamp levers designed for fast and easy mounting and pointing
    • Power supply: 100-240V 50/60Hz
    • Operating conditions: -20/45 °C
    • Power output for daisy-chain connection of more units: up to 8 projectors at 230V
    • Max output consumption: 230W
    • Weight: 9,6 kg
    • Dimensions (WxHxD): 380x530x645 mm

PHOTO GALLERY

Technical specifications

Versions

Code
Col. Temperature
EVO190EDY
EVO190EDY (END OF LIFE)
5600K
EVO190ETU
EVO190ETU (END OF LIFE)
3100K

Accessories & Related Products

EVO190LZ2550
EVO190LZ2550
(optional)
Optional zoom optic for EVO profiler series, 25°-50°
EVO190L19
EVO190L19
(optional)
Optic for EVO190E profiler, 19° beam
EVO190L26
EVO190L26
(optional)
Optic for EVO190E profiler, 26° beam
EVO190L50
EVO190L50
(optional)
Optic for EVO190E profiler, 50° beam
