EVO320F
PROLIGHTS
discontinued

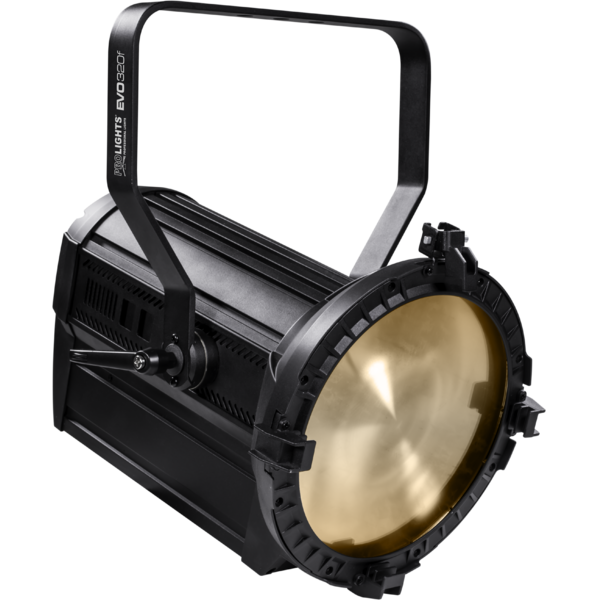

EVO320F

ORDER CODE: EVO320F

Main features:

    EVO320F is a Fresnel fixture with LED source in Prolights range, engineered to exceed conventional projectors in performance and power, creating a real opportunity to replace traditional equipment with LED light sources.Available in Tungsten (3100K) and Daylight (5600K) versions, EVO320F reproduces the projection uniformity and dimmer linearity of conventional projectors, as well as same usage operations making it a user-friendly projector for technical staff.Versatility is a key-factor of EVO320F, ie. the DMX-controlled focusing function, allowing transition from 18° spot to 60° flood beam, moving from a pullback shot to a powerful projection on a narrow spot. EVO320F and its set of barndoors allow control over beam shaping and light-field cuts.EVO320F response is exactly that of a conventional projector, results are natural and shadows have same behaviour of single-source spots. Operations have been optimized allowing replacement of traditional Fresnel luminaries with these LED-powered ones with no change to pre-existing studio setups.Compared to traditional projectors, EVO320F is only lacking in heat generation, it is characterized by cold working operations, reducing need and cost of air-conditioning in studios and implying a more comfortable environment for both talents and technicians.

    Advantages of EVO320F technology:Considerable energy saving during operationSimplified wiring: up to 6 Fresnel in a daisy-chain for both power and signal connectionNo need for dimmers nor lamp replacement, LED lifespan >50.000hNo maintenance operations, ideal when placed out of reachSuitable for long-lasting operationsCost-effective lower need for typical air-conditioned studio requirementsWorking with industry-standard accessoriesVirtually indestructible accessories and partsConstant colour temperature over the whole dimming scaleFlicker-free for cameras, TV-studios friendlyNo UV/IR emissionsNo harm installation in proximity of audience (TV, theaters) or light sensitive objects (museums)User-friendly LED display interface for dimming curve calibration, DMX setup and self-test

    Light source and optics
    • 32x10W (3A) LEDs-array
    • Lumen: Tungsten 8442 lm, Daylight 7599 lm
    • Lux (18°): Tungsten 20497 @2m , Daylight 18447 @2m
    • Peak intensity: Tungsten 82091cd, Daylight 73882cd
    • Color rendering: Tungsten >85Ra, Daylight >85Ra
    • Color Temperature: Tungsten 3200K, Daylight 5600K
    • Beam angle: 18°-60° zoom
    • High-efficiency optics maximizing uniformity of projection, framing precision, color temperature stability over the entire dimming curve
    • Average life LED life: >50,000 hours

    Electronics and features
    • Several DMX configurations (1, 2, 5 channels)
    1 channel: dimmer
    2 channels: dimmer, dimmer fine
    5 channels: dimmer, dimmer fine, strobe, zoom, zoom reset
    • 4-char LED display for control
    • Dimmer curve setting: 5 selectable configurations
    • Flicker-free frequency (>400 Hz) diodes suitable for camera recording
    • Quiet operations, forced-air cooling with no-noise fans


    Structure and Power supply
    • High-resistance aluminum body designed to facilitate heat dissipation
    • Designed for compatibility with industry-standard accessories
    • Internal Protection: IP20
    • Input/Output Power connections: Neutrik NAC3MPA/NAC3MPB
    • Input/Output Signal connections: 3p/5p XLR
    • Suspension bracket, rear handles and clamp levers designed for fast and easy mounting and pointing
    • Power supply: 100-240V 50/60Hz
    • Operating conditions: -20/45 °C
    • Power output for daisy-chain connection of more units: up to 6 projectors at 230V
    • Max output consumption: 335W
    • Weight: 7.5 kg
    • Dimensions (WxHxD): 455X333X318mm
