EXPLO3000D
PROLIGHTS
discontinued

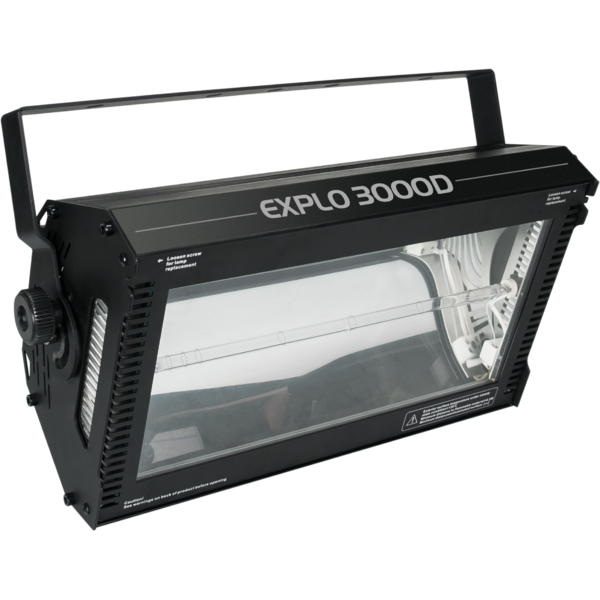

EXPLO3000D

ORDER CODE: EXPLO3000D

EXPLO3000D is an high-impact DMX strobe equipped with a 3000W Xenon lamp, conceived to reproduce astonishing visual effects. The advanced cooling system and lamp control circuit perform a continuous operation with light ON to be used as a high power blinder.
EXPLO3000D can be controlled by DMX in all its functions: 0-100% dimmer, 20ms/2s flash duration, flash frequency. The cooling system with internal fans integrates an internal thermic control to adjust the fan speed.

Main features:

  • 3000W Xenon lamp
  • >continuous operation with light ON
  • >0-100% dimmer
  • >20ms/2s flash duration

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 3000W xenon lamp
  • CCT: 5600
OPTICS
  • Beam angle: 110°
DYNAMIC EFFECTS
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 1/3/4channel
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 20ms/2s
  • Operating temperature: -10° ~ +45°
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 43W
PHYSICAL
  • IP rating: 30
  • Cooling: active, silent operation
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: Amphenol XLR 3p IN/OUT connectors
  • Power connection: 16 A Schuko plug
  • Dimensions (WxHxD): 460x255x150mm / 18.11''x10.04''x5.91''
  • Weight: 6,7kg / 14.77lbs

Versions

Accessories & Related Products

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualExplo3000d_USER_MANUAL_ITEN.pdf2MB

DMX chart & personalities

File name File size Download
EXPLO3000D Firmware rev. 1.1
manufacturer fixture library (Link) Link
prolights_explo3000d.d4Download
manufacturer fixture library (Link) Link
prolight_explo3000d_1ch.hed Download
prolight_explo3000d_3ch.hed Download
prolight_explo3000d_4ch.hed Download
manufacturer fixture library (Link) Link
explo3000d_1ch.ssl Download
explo3000d_3ch.ssl Download
explo3000d_4ch.ssl Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1 STABLE 12/09/2013
