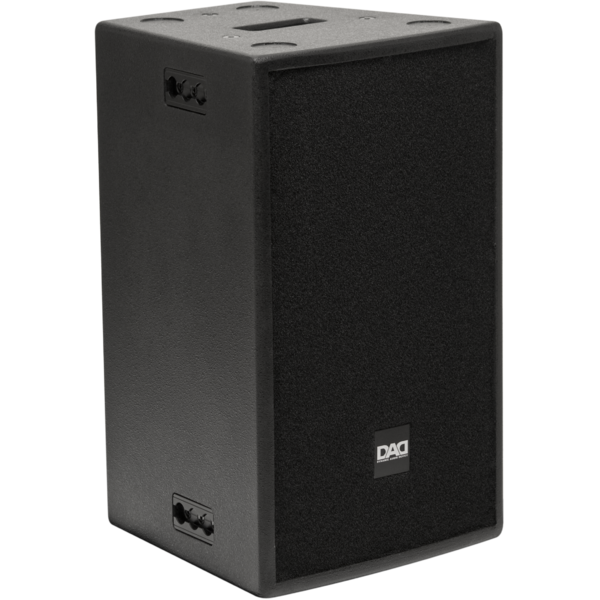

FUSION10A
DAD

FUSION10A

ORDER CODE: FUSION10A

Active loudspeakers, D+AB class bi-amp, 2-way 350 W+70 W, 124db SPL

Active loudspeakers, D+AB class bi-amp, 2-way 350 W+70 W, 124db SPL

Main features:

  • Low frequency: 10'' woofer/2.6''v.c.
  • High frequency: 1'' driver/1.7''v.c.
  • Frequency response: 65-18000 Hz (±3dB)
  • User controls: mic, line, master, eq LF-HF
  • Reproduction of voice and music for live and recorded performances
  • Birch plywood enclosure
  • For sound installations in environments requiring dynamics and sound pressure

PHOTO GALLERY

Technical specifications

LOUDSPEAKER
  • System type: active 2 way
COMPONENTS
  • Low frequency: 10'' woofer/2.6''v.c.
  • High frequency: 1'' driver/1.7''v.c.
FEATURES
  • Built-in amp LF/HF: 350+70W
  • SPL max: 124dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • SPL cont/peak: 118/124dB @1m (free field)
  • Frequency response: 65-18000Hz (±3dB)
  • Coverage angle HxV: 90x70°
  • Cross over frequency: 2000Hz
ELECTRONICS SPECIFICATIONS
  • Amplifier: digital + AB class
  • Power: 350+70W /4/8Ohm
  • Input sensitivity: 4 dBu (1,228Vrms) adjustable
  • Protection: fast limiter, temp
  • User controls: mic, line, master, eq LF-HF
  • Processor: analog
  • Operating voltage/frequency: 220 V~240 V/50 Hz
INPUT/OUTPUT CONNECTORS
  • Input signal: XLR IN/OUT
  • Power connection: VDE
CABINET CONSTRUCTION
  • Cabinet material: 15mm / 0.59'' birchplywood
  • Sospension system: 6 point M8 eyebolt, fly track, 35 mm pole mount
  • Angle: 10° trapezoidal taper
  • Handles: 2 on side
PHYSICAL
  • Dimensions (WxHxD): 304x495x300mm / 11.97''x19.49''x11.81''
  • Weight: 17kg / 37.48lbs

Versions

Accessories & Related Products

AS255
AS255
(optional)
Wall mount support for acoustic speakers, horiz. & vertical, max load 60 kg

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualFusion10a_USER_MANUAL_ITEN.pdf3MB
