FY250S

ORDER CODE: FY250S

Main features:

---

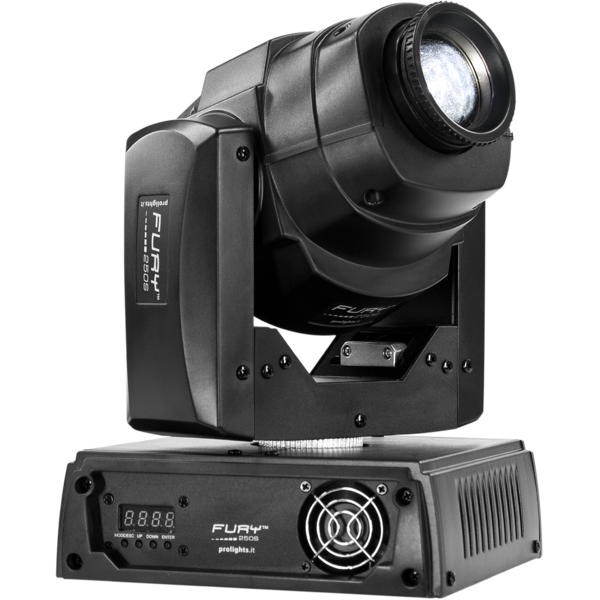

FY250S is a moving head SPOT based on a special LED optical system with a 1x50W white LED source. Despite the very compact sizes, FY250S is one of the most efficient luminaires in its range, its light output can be compared to a discharge 250W luminaire, reducing the energy consumptions.
FY250S features a wide range of functions and effects, composed by 8 dichroic color filters, 7 rotating gobos, 3-facet prism and manual focus for limitless effect combinations.
Its compact-size structure, its rapid movements and silent operations grant this projector to be a valuable solution for lighting projects in limited-space environments like live stages and clubs.

Light source and optics

• 1 x 50W high-power white LED
• Brightness: 26000 Lux @1mt
• Projection angle: 17°
• High efficiency optical system
• High definition anti-reflection lenses with achromatic coating
• Focus: Manual adjustment on the head
• LED average life span: >50'000 h

Dimmer/Shutter/Strobo

• 0-100% linear dimmer
• Independent shutter and fading effects with adjustable speed
• Strobe: mechanical, 1-20 flash per second

Color system

• Color wheel with 8 dichroic filters + open (linear-stepless selection)
• Rainbow effect with speed adjustment
• Easy calibration and maintenance by magnetic repositioning

Effects

• Rotating gobo wheel: 7 interchangeable gobos (1 of which dichroic)
• Gobos rotation in both CW and CCW direction
• “Gobo-shake” effect and continuous rotation
• Easy access to gobo wheel for replacement through slot-n-lock panel
• Effect wheel with 3 facet prism rotating in both directions at different speed
• Easy show: built-in programs with automatic/sound activated mode enabled by LCD control panel

Electronics

• User Interface: LED display to control unit DMX addressing, general settings
• 2 DMX available configurations: 8 channels (8 bit) and 13 channels (16 bit) for advance or basic control mode
• Input and output signal through XLR 3p connector
• Unit reset: through control panel or via DMX
• Electronic self-test and check-up for diagnostics
• Cooling: forced air, protection against overheating

Structure and moving body

• High resistance and flame retardant polymer case in black colour
• Motion Angle: Pan = 540° Tilt = 270°
Pan/Tilt resolution: 8-bit or 16-bit
• Pan = 2,10° Pan Fine = 0,008° Tilt = 1,05° Tilt Fine = 0,004°
• Automatic repositioning of effects in case of accidental movements
• Suspension and fixing: any possible working position through omega kit (included)

Power supply

• Power unit: 100-240V 50/60Hz
• Max power consumption: 84 W
• Power output to link more units in a chain: up to 11 fixtures at 230V

Weight and dimensions

• Weight: 5,7 kg
• Dimensions (WxHxD): 229x336x213 mm
