FY250W
PROLIGHTS
discontinued

FY250W

ORDER CODE: FY250W

Main features:

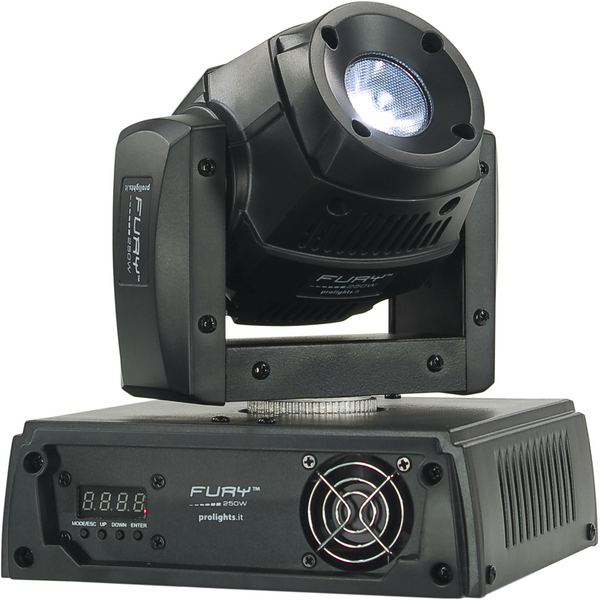

    FY250W is a moving head WASH based on a special LED optical system with a 1x50W RGB/FC LED source. Despite the very compact sizes, FY250S is one of the most efficient luminaires in its range, its light output can be compared to a discharge 250W luminaire, reducing the energy consumptions.
    FY250W features a limitless range of colour through the RGBW/FullColor mixing, which  breaks the limit of the traditional dichroic filters on wheel.
    Its compact-size structure, its rapid movements and silent operations grant this projector to be a valuable solution for lighting projects in limited-space environments like live stages and clubs.

    Light source and optics

    • 1 x 50W high-power RGBW/Full Color
    • Brightness: 3500 Lux @1mt
    • Projection angle: 25°
    • High efficiency optical system
    • High definition anti-reflection lenses with achromatic coating
    • LED average life span: >50'000 h

    Dimmer/Shutter/Strobo

    • 0-100% linear dimmer
    • Independent shutter and fading effects with adjustable speed
    • Strobe: mechanical, 1-20 flash per second

    Color system

    • Color synthesis: 4in1 RGBW/FullColor mixing for tones, temperature and saturation control
    • Rainbow effect with speed adjustment

    Effects

    • Easy show: built-in programs with automatic/sound activated mode enabled by LCD control panel

    Electronics
    • User Interface: LED display to control unit DMX addressing, general settings
    • 2 DMX available configurations: 6 channels (8 bit) and 15 channels (16 bit) for advance or basic control mode
    • Input and output signal through XLR 3p connector
    • Unit reset: through control panel or via DMX
    • Electronic self-test and check-up for diagnostics
    • Cooling: forced air, protection against overheating

    Structure and moving body

    • High resistance and flame retardant polymer case in black colour
    • Motion Angle: Pan = 540° Tilt = 270°
    • Pan/Tilt resolution: 8-bit or 16-bit
    • Pan = 2,10° Pan Fine = 0,008° Tilt = 1,05° Tilt Fine = 0,004°
    • Automatic repositioning of effects in case of accidental movements
    • Suspension and fixing: any possible working position through omega kit (included)

    Power supply

    • Power unit: 100-240V 50/60Hz
    • Max power consumption: 67 W
    • Power output to link more units in a chain: up to 12 fixtures at 230V

    Weight and dimensions

    • Weight: 3,2 kg
    • Dimensions (WxHxD): 208x255x213 mm
