FY700S

ORDER CODE: FY700S

Main features:

---

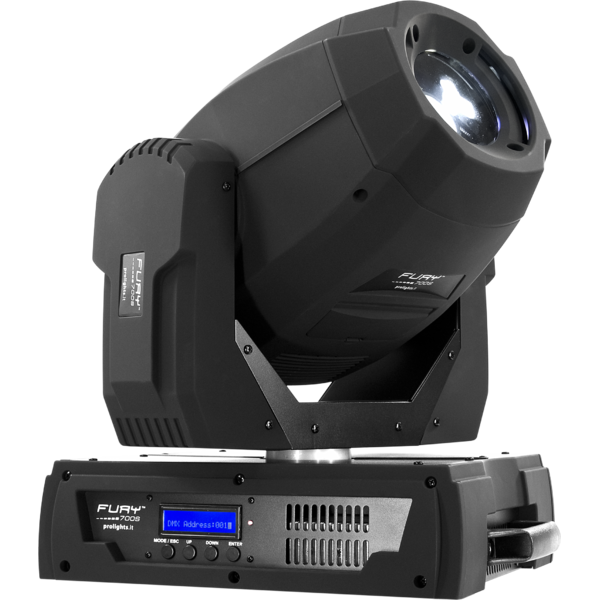

FY700S is a moving head SPOT based on a special LED optical system with a 225W white LED source. FY700S is one of the most efficient luminaires in its range, its light output can be compared to a discharge HMI575W luminaire, reducing the energy consumptions.
FY700S features a wide range of functions and effects, composed by 8 dichroic colour filters, 2 gobo wheels, one rotating (7 gobos) and one static (8 gobos), iris, 3-facet prism and electronic focus for limitless effect combinations.
Its compact-size structure, its rapid movements and silent operations grant this projector to be a valuable solution for lighting projects in large-sized environments like live stages and clubs.

Light source and optics

• 3 x 75W (225W) high-power white LED
• Brightness: 95000 Lux @1mt
• Projection angle: 18°
• High efficiency optical system
• High definition anti-reflection lenses with achromatic coating
• Focus: motorized focusing, from 2 m to infinity
• LED average life span: >50'000 h

Dimmer/Shutter/Strobo

• 0-100% linear dimmer
• Independent shutter and fading effects with adjustable speed
• Strobe: mechanical, 1-20 flash per second

Colour system

• Colour wheel with 7 dichroic filters + open (linear-stepless selection)
• Rainbow effect with speed adjustment
• Easy calibration and maintenance by magnetic repositioning

Effects

• 1st Gobo wheel: 7 rotating and interchangeable Gobos
• 2nd Gobo wheel: 8 metallic static Gobos
• 56 possible overlapping gobos combinations
• “Gobo-shake” effect and continuous rotation
• Easy access to gobo wheel for replacement through slot-n-lock panel (gobo Ø 26.8 mm - image Ø 23 mm)
• Effect wheel with 3 facet prism rotating in both directions at different speed
• 5-100% motorized iris
• Easy show: built-in programs with automatic/sound activated mode enabled by LCD control panel

Electronics

• User Interface: LCD display to control unit DMX addressing, general settings
• 2 DMX available configurations: 11 channels (8 bit) and 16 channels (16 bit) for advance or basic control mode
• Input and output signal through XLR 3p connector
• Unit reset: through control panel or via DMX
• Electronic self-test and check-up for diagnostics
• Cooling: forced air, protection against overheating

Structure and moving body

• High resistance and flame retardant polymer case in black colour
• Motion Angle: Pan = 540° Tilt = 360°
• Pan/Tilt resolution: 8-bit or 16-bit
• Pan = 2,10° Pan Fine = 0,008° Tilt = 1,41° Tilt Fine = 0,006°
• Automatic repositioning of effects in case of accidental movements
• Suspension and fixing: any possible working position through omega kit (included)

Power supply

• Power unit: 100-240V 50/60Hz
• Max power consumption: 380 W

Weight and dimensions

• Weight: 20,5 kg
• Dimensions (WxHxD): 540x445x485 mm
