HD100T
PROAUDIO

HD100T

ORDER CODE: HD100T

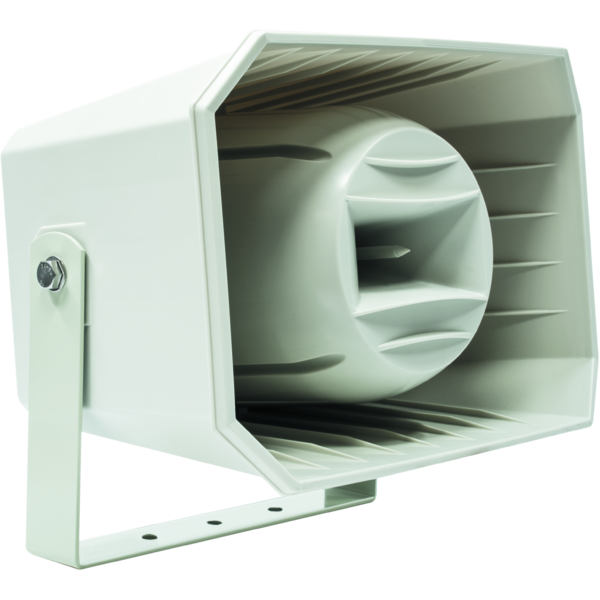

2-way horn coaxial speaker with 6.5" LF driver and 1.5" HF driver, compact size and high acoustic performance.

Main features:

  • Excellent quality of vocal and music reproduction.
  • Particularly suitable for use in call or alarm systems in places with high level of background noise.
  • ABS body, sand colour.
  • Solid and compact construction.
  • Suitable for both indoor and outdoor use.
  • Weather resistant (IP65).
  • Steel fixing base included.

PHOTO GALLERY

Technical specifications

LOUDSPEAKER
  • System type: coaxial horn loaded
COMPONENTS
  • Low frequency: 6.5''
  • High frequency: 1''
FEATURES
  • AES/program power: 50/100W
  • Input 100 V: 2.6/4.5/9/12.5/25/50W
ACOUSTICAL SPECIFICATIONS
  • Sensitivity: 86dB @1W/1m (free field)
  • Impedance: Low impedence 8 Ohm
  • Constant voltage: 70/100 V
  • Frequency response: 250÷10000Hz (±3dB)
INPUT/OUTPUT CONNECTORS
  • Input signal: terminal with wire
PHYSICAL
  • IP rating: 65
  • Dimensions (WxHxD): 362x252x310mm / 14.25''x9.92''x12.2''
  • Weight: 4kg / 8.82lbs

Versions

Accessories & Related Products

    DOWNLOAD

    Data sheet & specs

    File name File size Download

    User manual

    File name File size Download
    User manualHd100t_USER_MANUAL_ITEN.pdf258KB
