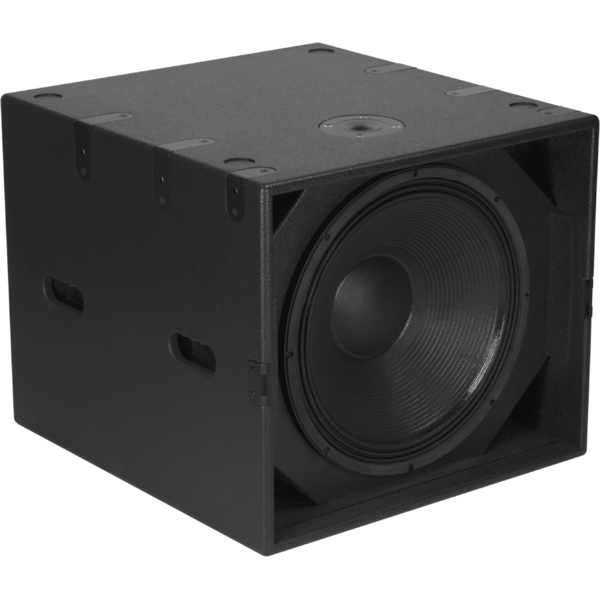

HD118SW

ORDER CODE: HD118SW

Main features:

---

Bass-reflex passive subwoofer, 1500W AES, 130dB SPL
Components:

• Long-excursion 18'' Nd woofer with 4'' voice coil
• Impedance: 8Ohm
• Recommended amplifier: up to 3000W RMS/8Ohm
• Sensitivity: 97dB @1W/1m
• Frequency response: 40-120Hz (±3dB)
• External LPF recommended range: 80Hz to 150Hz
Connections:

• Neutrik NL-4 Speakon in/out
Cabinet construction:

• Cabinet made of 18mm multilayer birch plywood, reinforced with steel strengthenings
• 18'' woofer in bass-reflex loading, B4 ''highly-flat'' configuration for extension of response to lowest octaves and max control over diaphragm
• Built-in mechanics for stacking of DAD HDLA500 & MA line-array systems
• Ready to fit optional hardware for transportation
• 35mm pole-mount adapter for stands
Applications:

• Subwoofer delivering extended frequency response
• High pressure on low frequencies in large indoor/outdoor venues
• Sound reinforcement in live applications, theaters of permanent installations
• Subwoofer section of multi-amplified sound systems, combined with DAD HDLA500 & MA line-array modules
