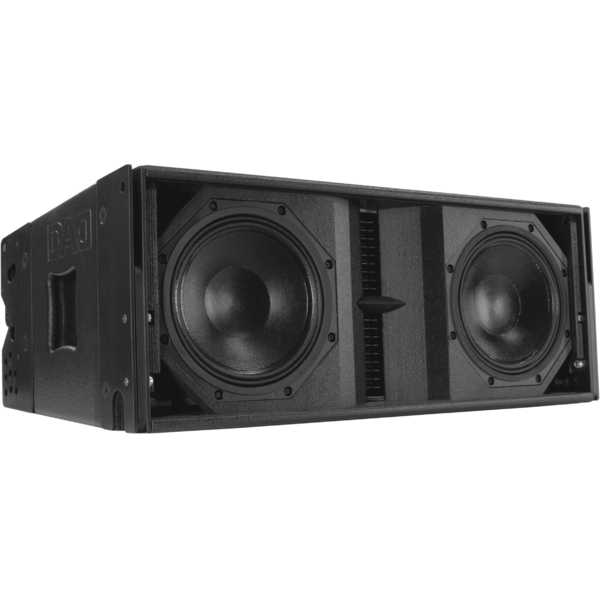

HDA500

ORDER CODE: HDA500

Main features:

---

Hi-performance compact module for line-array systems, bi-amplifiable, 3-way 500W AES, 134dB SPL
Components:

• 8'' Nd woofer, long-excursion, 2'' voice coil
• 8'' Nd mid-woofer, 2'' voice coil
• 2 Nd HF compression drivers with 1'' throat, titanium diaphragm, 3'' voice coil
• 100°x7.5° (HxV) constant-directivity waveguide
• Impedance: LF-MF 8Ohm, HF 16Ohm
• Recommended amplifier: LF-MF up to 1000W RMS/8Ohm, HF up to 200W RMS/16Ohm
• Sensitivity (@1W/1m): LF 98dB, HF 108dB
• Frequency response: 65-16000Hz (±3dB)
• Crossover frequency: 300/1800Hz
• External HPF recommended range: 80Hz to 100Hz
• Passive filter with HF driver protection
• EQ switch to select optimal setup of each module for short, medium and long-throw applications
Cabinet construction:
• Trapezoidal profile with 7,5° enclosure angle
• 15mm multilayer birch plywood, hi-resistance scratch-proof finishing, black painting
• 8'' Nd woofers installed in separate chambers
• Nd HF drivers loaded by waveguides designed for curvilinear line-array systems
• Built-in hardware for suspension, 1° steps for angle adjustment, safety-pins in steel
• 7:1 safety factor for mechanics
Connections:

• Neutrik NL-4 Speakon in/out
Applications:
• High directivity & efficiency PA system for indoor/outdoor events in large venues
• Sound reinforcement in live applications, theaters and permanent installations
• Combined with DAD MA18SP subwoofers to extend performance in the low range
Software:

• Software for correct setup and aiming of HDLA modules
