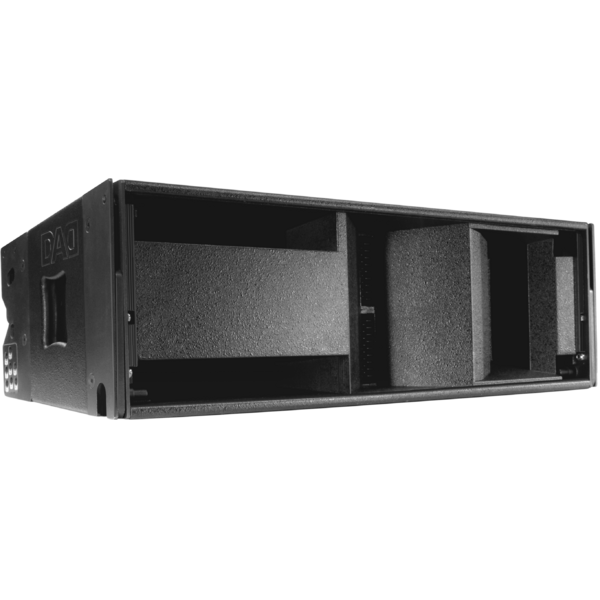

HDA800
DAD
discontinued

HDA800

ORDER CODE: HDA800

Main features:

    Hi-performance compact module for line-array systems, "all loaded" configuration, bi/tri-amplifiable, 3-way 800W AES, 134dB SPL
    Components:
    • 12’’ Nd woofer, long excursion, 3’’ voice coil
    • 8’’ Nd mid-woofer, 2’’ voice coil
    • 2 Nd HF compression drivers with 1’’ throat, titanium diaphragm, 1.7’’ voice coil
    • 80°x75° (HxV) constant-directivity waveguide
    • Impedance: LF 8Ohm, MF 16Ohm, HF 16Ohm
    • Recommended amplifiers: LF up to 1000W RMS/8Ohm, MF up to 400W RMS/16Ohm, HF uo tp 200W RMS/16Ohm
    • Sensitivity (@1W/1m): LF 98dB, MF 101dB, HF 108dB
    • Frequency response: 60-16000Hz (±3dB)
    • Crossover frequency: 300/1800Hz
    • External HPF recommended range: 80Hz to 100Hz
    • Passive filter with HF driver protection
    • EQ switch to select optimal setup of each module for short, medium and long-throw applications
    Cabinet construction:
    • Trapezoidal profile with 7,5° enclosure angle
    • 18mm multilayer birch plywood, hi-resistance scratch-proof finishing, black painting
    • 12” Nd woofer in band-pass configuration, reducing module height to 10,3'' (262mm) only
    • 8” Nd mid-woofer loaded by a double-slot waveguide with longitudinal phase plug
    • Nd HF drivers loaded by waveguides designed for curvilinear line-array systems
    • Built-in hardware for suspension, 1° steps for angle adjustment, safety-pins in steel
    • 7:1 safety factor for mechanics
    Connections:
    • Neutrik NL-8 Speakon in/out
    Applications:
    • High directivity & efficiency PA system for indoor/outdoor events in large venues
    • Sound reinforcement in live applications, theaters and permanent installations
    • High quality vocal/music performance for live or recorded music
    • Combined with DAD HDL21SW subwoofers to extend performance in the low range
    Software:
    • Software for correct setup and aiming of HDLA modules
