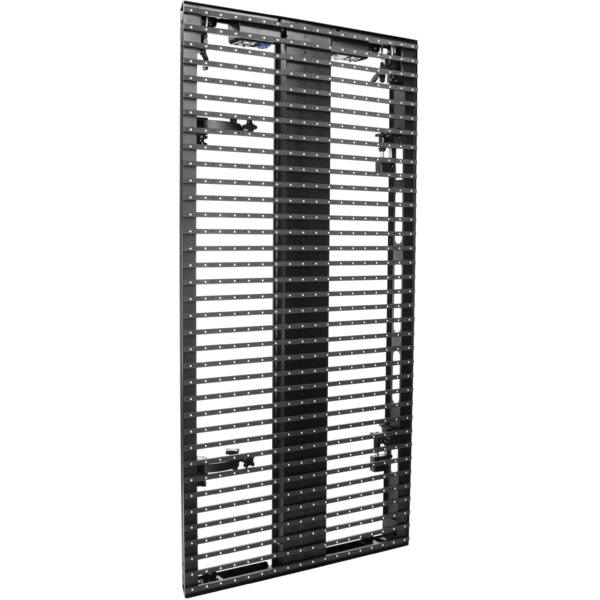

LEDCOMPASS33 is a LED module for the creation of ledscreens with 33mm pixel pitch, ideal for video screening, pictures and backgrounds for medium viewing distances from ledwall surface. The architecture of LEDCOMPASS33 is conceived with 1200x600 mm module size, featuring 648 SMD FullColor LEDs for an impressive light output up to 2700NIT. The module design is completely made in aluminum and the on-board mechanics allow the mounting in curve-shape configurations (+/- 18° per module). IP65 protection rate on front side makes LEDCOMPASS33 suitable also for temporary outdoor application. With a transparency factor of 47%, LEDCOMPASS33 allows the light to go through the screen surface, opening up a wide range of creative design possibilities, combining video screening with backlights through washlight and beam projectors, even for 3D projections. The main structure is designed in aluminum, making LEDCOMPASS33 extremely lightweight (only 18,75 kg/m2), allowing a wide flexibility in configuration, also in hanging applications, with no limits of weight.
Applications
In concerts and live events, where heavy large-size screen would overload the supporting structure
In TV Studios for multiple viewing angle
Wide-canvas dynamic backdrops for theatres and TV studios combined with lighting effects
Touring and Live event for Camera streaming
Large trade-show booths with creative video imaging
In theme parks or public events
Mechanical architecture
Module dimensions (WxHxD): 600x1200x66 mm
Module weight: 13.500 g
Weight per square meter: 18,75 kg
LED housing bar in aluminum
Transparency rate: 47%
Main structure in steel
Curvability: +/- 18° each module
Mechanical finishing: black
Cooling: natural airflow
Working position: every orientation
Vertical hanging system: built-in aliscaf clamp support
Electrical features
Power supply: AC 110/230V 50/60Hz
Power IN connections: Neutrik Powercon
Max power consumption (module): 165W
Average power consumption (module): 100W
Max power consumption (per square meter): 229W
Power output: Max 10 modules
MTBF: > 1.000 h
Working temperature: -10/50 °C
Max ambience humidity: 10% - 90%
Video features
LED source: high-power SMD FullColor
Module resolution: 18x36 pixel, 648 total pixel
Pixel pitch: 33,34mm
LED density: 900 LED/sqm
Luminous flux: 2.700 cd/sqm (NIT)
LED life span: >50.000h
Colours: >68,7 billions through RGB mixing
Grayscale: 12bit
Refresh rate: >1000Hz
Colour calibration through PC software
Maximum video IN signal resolution: 1024x768 pixel
Viewing angle: 140° horizontal, 140° vertical
Dead pixel ratio: <0,002
Control system
Dedicated interface (Sender box) for video signal distribution and screen configuration
Data IN sender box: USB connector
Data IN module: RJ45 connectors
Connection between screen and sender box: USB cable
Connection between sender box and videowall: CAT5 data cable + Ethercon Neutrik connectors
