LEDMATRIX10

ORDER CODE: LEDMATRIX10

Main features:

---

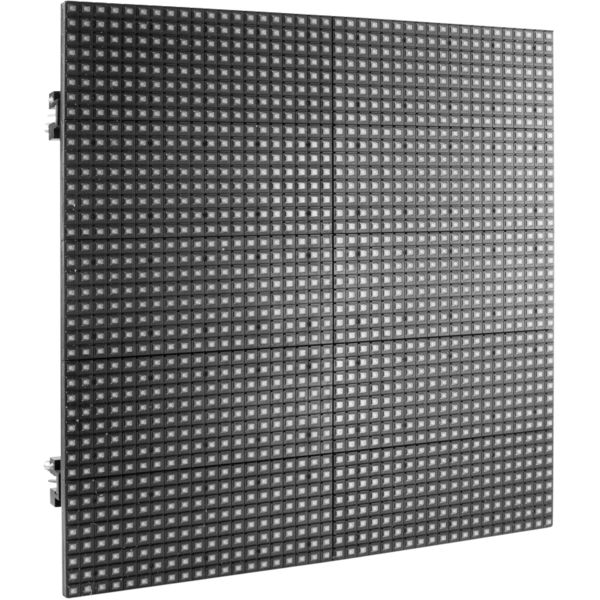

LEDMATRIX10 is a LED module to create high-definition led screens with 6mm pixel pitch, ideal for video screening, pictures and backgrounds for short viewing distances from led wall surface.
The architecture of LEDMATRIX10 is conceived with 400x400mm module size, featuring 1600 SMD FullColor LEDs for an impressive light output (up to 5000NIT) even for daylight application.
The instantaneous colour calibration system, through the control unit, features rich and vibrant video images with superb colour depth and uniformity, providing vivid and natural true colours.
IP65 protection rate on front side makes LEDMATRIX10 suitable for both indoor and outdoor projects.
The architecture of LEDMATRIX0 modules has been designed to optimize the assembling times, the carrying volume and the total weight by observing the needs of professional rental users.
The main structure is designed in aluminium, making LEDMATRIX10 extremely lightweight (only 6,40 kg/module), allowing a wide flexibility in configuration, also in hanging applications, with no limits of weight.

Applications

• In environments where the video-projection is not allowed by the high luminosity or short depth of the room
• In TV Studios for multiple viewing angle
• Touring and Live event for Camera streaming
• Large trade show booths with creative video imaging
• In theme parks or public events

Mechanical architecture

• Module dimensions (WxHxD): 400x400x60 mm
• Module weight: 6.400 g
• Weight per square meter: 40,00 kg
• Main structure in steel
• Mechanical finishing: black
• Cooling: natural airflow
• Working position: every orientation
• Vertical hanging system: Iron Fly-bar with aliscaf clamps

Electrical features

• Power supply: AC 110/230V 50/60Hz
• Power IN connections: Neutrik Powercon
• Max power consumption (module): 100W
• Average power consumption (module): 80W
• Max power consumption (per square meter): 625W
• Power output: Max 12 moduli
• MTBF: > 1.000 h
• Working temperature: -10° / 50°
• Max ambiance humidity: 10% - 90%

Video features

• LED source: high-power SMD FullColor
• Module resolution: 40x40 pixel, 1600 total pixel
• Pixel pitch: 10 mm
• LED density: 10'000 LED/sqm
• Luminous flux: 5.000 Cd/sqm (NIT)
• LED life span: >50.000 h
• Colours: >68,7 billions through RGB mixing
• Gray scale: 12bit
• Refresh rate: >300 Hz
• Colour calibration through PC software
• Maximum video IN signal resolution: 1024x768 pixel
• Viewing angle: 140° horizontal, 140° vertical
• Dead pixel ratio: <0,002

Control system

• Dedicated interface (Sender box) for video signal distribution and screen configuration
• Data IN sender box: USB connector
• Data IN module: RJ45 connectors
• Connection between screen and sender box: USB cable
• Connection between sender box and video wall: CAT5 data cable + Ethercon Neutrik connectors
